TPS563200DDCR - Texas Instruments Reguladores de tensión – reguladores conmutados DC/DC
Regular price
€0,95
Después de realizar un pedido, nuestro equipo de ventas le enviará una confirmación por escrito del precio final, los gastos de envío y el tiempo estimado de entrega. Los derechos de importación, impuestos, tarifas de corretaje y otros cargos de destino son responsabilidad del cliente. Cuando sea necesario, podemos ayudar con la información del producto disponible y los documentos aduaneros para la declaración de importación; El despacho de aduana final y el pago siguen siendo responsabilidad del cliente.
Couldn't load pickup availability
Integrated Circuit
TPS563200DDCR
Buck Switching Regulator IC Adjustable 0.76V~7V 1 Output 3A TSOT-23-6
In Stock
SOT-23-THN-6 (DDC)
normal
Unit Price$1.2305
In Stock
ManufacturerTI
PackageSOT-23-THN-6 (DDC)
Stock4866
PackTape & Reel (TR)
Basic Information
| Manufacturer | TI |
|---|---|
| Manufacturer Part Number | TPS563200DDCR |
| Description | Buck Switching Regulator IC Adjustable 0.76V~7V 1 Output 3A TSOT-23-6 |
| IC Category | Voltage Regulators - DC DC Switching Regulators |
| Package | SOT-23-THN-6 (DDC) |
| Packaging | Tape & Reel (TR) |
| Standard Pack Quantity | 3000 |
| Available Stock | 4866 |
| Availability | In Stock |
| Lifecycle Status | normal |
Key Specifications
| Operating Temperature | -40 C~+85 C@(TA) |
|---|---|
| Frequency-Switching | 650kHz |
| Function | Step-down type |
| Number of Outputs | 1 |
| Features | Cycle-by-cycle current limiting; Hiccup current limiting; Light load efficient mode; Overcurrent Protection |
| Output Type | Adjustable |
| Topology | Buck |
Technical Attributes
| Voltage - Supply | 4.5V~17V |
|---|---|
| Switch tube (built-in/external) | Built-in |
| Voltage - Output | 760mV~7V |
| Current - Output | 3A |
| Quiescent Current | 190uA |
Documents & Engineering Resources
Inventory, lead time, and pricing are updated regularly. Technical data is provided for engineering reference.

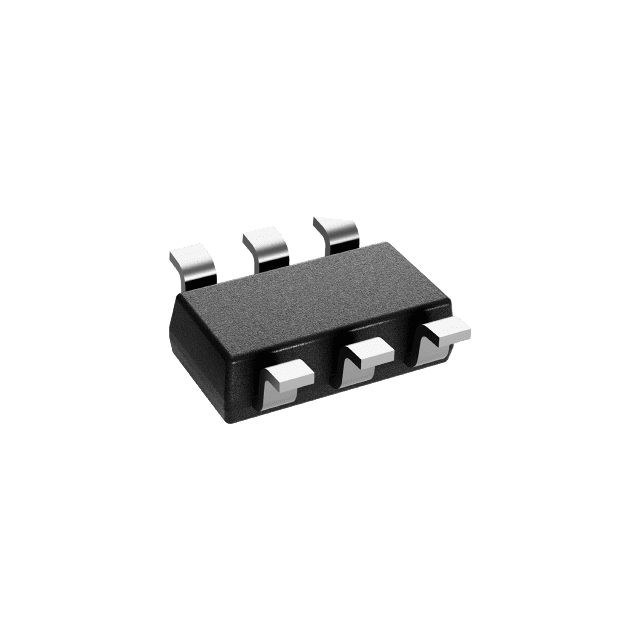

Package: SOT-23-THN-6 (DDC); 6 pins. Verified for TPS563200DDCR against manufacturer package information. The image is a representative package illustration, not a pin-assignment or mechanical design reference.
