TPS562242DRLR - Texas Instruments Reguladores de tensão – reguladores de comutação DC/DC
Regular price
R$ 1,00
Descontos por volume
| Quantity | Unit Price |
|---|---|
| 5+ | R$ 0,16 |
| 50+ | R$ 0,13 |
| 150+ | R$ 0,11 |
| 500+ | R$ 0,09 |
| 2500+ | R$ 0,08 |
| 4000+ | R$ 0,08 |
Depois de fazer um pedido, nossa equipe de vendas enviará uma confirmação por escrito do preço final, despesas de envio e prazo estimado de entrega. Direitos de importação, impostos, taxas de corretagem e outros encargos de destino são de responsabilidade do cliente. Quando necessário, podemos auxiliar com informações disponíveis sobre produtos e documentos aduaneiros para declaração de importação; o desembaraço aduaneiro final e o pagamento permanecem de responsabilidade do cliente.
Couldn't load pickup availability
Integrated Circuit
TPS562242DRLR
Buck Switching Regulator IC Adjustable 0.8V~10V 1 Output 2A SOT-563-6
In Stock
SOT-5X3-6 (DRL)
normal
Unit Price$0.161
In Stock
ManufacturerTI
PackageSOT-5X3-6 (DRL)
Stock39555
PackTape & Reel (TR)
Basic Information
| Manufacturer | TI |
|---|---|
| Manufacturer Part Number | TPS562242DRLR |
| Description | Buck Switching Regulator IC Adjustable 0.8V~10V 1 Output 2A SOT-563-6 |
| IC Category | Voltage Regulators - DC DC Switching Regulators |
| Package | SOT-5X3-6 (DRL) |
| Packaging | Tape & Reel (TR) |
| Standard Pack Quantity | 4000 |
| Available Stock | 39555 |
| Availability | In Stock |
| Lifecycle Status | normal |
Key Specifications
| Operating Temperature | -40 C~+125 C@(TJ) |
|---|---|
| Function | Step-down type |
| Frequency-Switching | 1.4MHz |
| Number of Outputs | 1 |
| Features | Cycle-by-cycle current limiting; Hiccup current limiting; Light load efficient mode; Overcurrent Protection |
| Output Type | Adjustable |
| Topology | Buck |
Technical Attributes
| Voltage - Supply | 3V~17V |
|---|---|
| Switch tube (built-in/external) | Built-in |
| Voltage - Output | 800mV~10V |
| Current - Output | 2A |
| Quiescent Current | 100uA |
Documents & Engineering Resources
Inventory, lead time, and pricing are updated regularly. Technical data is provided for engineering reference.

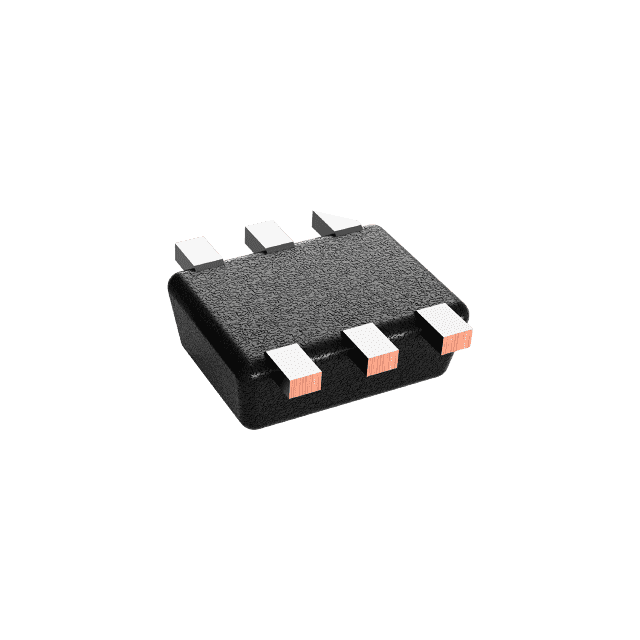

Package: SOT-5X3-6 (DRL); 6 pins. Verified for TPS562242DRLR against manufacturer package information. The image is a representative package illustration, not a pin-assignment or mechanical design reference.
