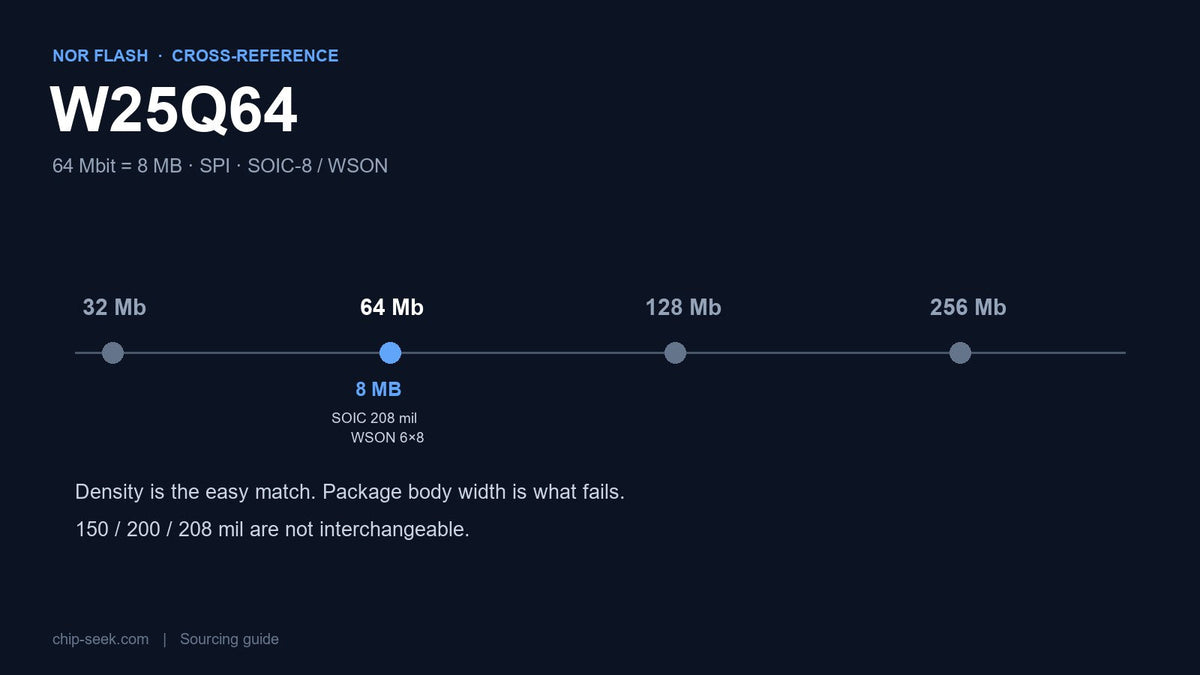

1. Where 64 Mbit fits

Serial NOR density clusters around three points: 16–32 Mbit for small RTOS images and configuration, 64 Mbit for mid-sized firmware with a file system or OTA staging, and 128 Mbit and above for Linux-class images and data logging.

A 64 Mbit part gives 8 MB of address space. After a bootloader, a configuration area and an OTA staging partition, a practical application budget lands around 3–5 MB — enough for a networked device with a web interface or a modest file system, and not enough for a full Linux image.

That is why this density is so common in routers, cameras, gateways and industrial controllers: it is the smallest part that comfortably holds a connected application.

Why NOR density choices are sticky

Once a product ships, the flash density is difficult to change. The bootloader assumes an address, the file system assumes a size, the OTA flow assumes two banks, and the manufacturing test assumes a specific part. Even a 64 Mbit to 128 Mbit upgrade, which sounds trivial, touches all four.

That is why designers tend to over-specify density at the start rather than under-specify. The cost difference between 64 and 128 Mbit is a few cents; the cost of a storage redesign late in a product's life is weeks of engineering.

The reverse direction — over-specified and now trying to save cost — is the more common pressure. It is also the more expensive one, because shrinking the address space forces a review of everything that depended on it.

2. What must match

The package row deserves attention. In the 128 Mbit family, most parts are SOIC-8 208 mil. In the 64 Mbit family, the same part number can exist in 150 mil, 200 mil and 208 mil SOIC bodies plus two WSON/USON sizes. Two parts can be "SOIC-8" and still not fit the same pad.

3. The Winbond family map

Reading the suffix is the first step. The "JV" family is 3 V and the "JW" family is 1.8 V; the package code follows, and the final letters encode temperature and quality options. In the Winbond scheme, the JEDEC ID for this density is EF 40 17 — a useful thing to log at boot, because it tells you immediately which part the board actually received.

Density pricing is not linear. The 64 Mbit point often has the best cost per megabyte in the NOR family, because it shares the same die generation and packaging as 32 Mbit while doubling capacity. That is one reason it stays popular even as applications grow.

4. Cross-reference candidates

All three are 64 Mbit, 3 V-class SPI parts. The differences are in package geometry, JEDEC ID, status-register layout and fast-read configuration. The Macronix part is 200 mil, the GigaDevice part is 208 mil, and the ISSI part is a WSON — three different footprints for the same density.

That is the single most important practical point in this article: at 64 Mbit, density and interface converge but packaging does not. Check the mechanical drawing before assuming a cross-reference.

A common production story: the engineering sample was a 208 mil part, the second source arrived in 150 mil, and the boards failed at first article because the pads were 0.5 mm too wide on each side. The parts were electrically identical and mechanically wrong. Always compare the land pattern, not only the pin count.

Assembly notes for leadless packages

WSON and USON parts are not just smaller SOIC parts. They have an exposed pad, no compliant leads, and a different reflow profile. Three practical points decide whether a substitution succeeds in production.

Stencil design. The paste aperture for the pad must avoid excessive volume; too much paste causes the part to float or tilt.

Inspection. There are no visible leads to inspect. X-ray or automated optical inspection of the pad area is the only reliable check, and not every contract manufacturer has it on the line.

Rework. Removing a leadless package without damaging the pad is harder than removing a SOIC. If the product has a high field-failure rate, that matters.

If the goal is a drop-in replacement on an existing line, staying with the same package family is usually worth more than the price difference.

5. Package geometry is the real compatibility gate

SOIC-8 150 mil. Narrow body, about 3.9 mm. Common in older and low-cost designs.

SOIC-8 200 mil. About 5.2 mm. Macronix uses this width for several 64 Mbit parts.

SOIC-8 208 mil. About 5.3 mm. Winbond's standard for the JV/JW families, and the most common width overall.

WSON-8 6×8 and 5×6. No leads, exposed pad, smaller footprint. Used when board space is tight; requires a stencil and reflow profile that many older lines do not have.

USON-8 3×4. The smallest option, typically for wearables and space-constrained modules.

Two widths that look nearly identical on a drawing — 200 and 208 mil — are not interchangeable on an existing footprint without checking the land pattern. A 0.1 mm difference is enough to create a tombstone or an open joint in production.

What about 32 Mbit?

A 32 Mbit part halves the space again, to 4 MB. That is enough for a small RTOS image with a single-bank OTA, but not for dual-bank updates of a 2 MB image.

The cost saving is small, and the package options narrow. Unless the product is extremely cost-sensitive and the image is small, staying at 64 Mbit is usually the better engineering choice.

A quick rule: if the application image is under 2 MB and OTA needs two banks, 64 Mbit is usually sufficient. Above that, plan on 128 Mbit.

How much actually fits in 8 MB

A rough budget helps. An RTOS application with a network stack typically occupies 256–512 KB. A small web interface adds 100–300 KB. A configuration store and logs may take another few hundred kilobytes. A bootloader takes 32–64 KB.

That leaves several megabytes free on a 64 Mbit part — enough for dual-bank OTA of a 1–2 MB image, or for a modest file system. It is not enough for a Linux kernel plus rootfs, which is why the 64 Mbit class stops where it does.

If the roadmap includes a larger application, or a second language pack, or audio assets, the 128 Mbit part is the safer starting point. The difference in unit price rarely justifies a later redesign.

6. Moving between densities

Changing from 128 Mbit to 64 Mbit is a storage-layout decision before it is a component decision. The address space halves, and everything above the new limit must be re-planned.

Check the bootloader first. If it reserves space by absolute address, a smaller device may place the application in an area that no longer exists.

Check the file system. A littlefs or SPIFFS partition sized for 8 MB will not fit in 4 MB. Resize the partition table, not just the flash.

Check the OTA design. Dual-bank updates need twice the image size. On a 64 Mbit part, a 3 MB image with dual-bank staging consumes 6 MB before any data.

Going the other way, from 64 to 128 Mbit, is easier: the address map grows, and the same layout usually works with a larger partition. It is also the cheaper long-term decision if the firmware is still growing.

Reading the timing table

The AC characteristics table is where substitution risk hides. Four rows matter most.

Page program time. Typically a few hundred microseconds per 256-byte page. Slower parts extend manufacturing programming time, which matters at volume.

Sector erase time. A 4 KB sector erase is tens of milliseconds; a 64 KB block erase is several hundred. If the OTA flow erases block by block, a slower part changes the update window.

Chip erase time. Seconds. Some production flows do a full chip erase before programming; check that the timeout accommodates the new part.

Read latency at frequency. Fast-read commands need the correct dummy cycles. The number differs by vendor and by clock, and it is the most common cause of corrupted reads after a swap.

7. Firmware checks

The 3 V and 1.8 V families behave the same way at the protocol level; the difference is electrical. A 1.8 V part on a 3.3 V bus is not a substitution, and the failure mode is often intermittent rather than immediate.

Block protection and bootloader safety

Most NOR parts offer block protection through status register bits. The default state varies: some ship unprotected, some protect the top or bottom sectors.

For a product with a bootloader, protect the bootloader region explicitly in the manufacturing flow rather than relying on defaults. A part that arrives with different default protection can prevent the first firmware update, and the failure looks like a software bug.

Also confirm that the protection bits can be cleared with the command sequence your tool uses. Some vendors require a specific unlock sequence, and a mismatch leaves the board permanently read-only in the field.

8. Test plan

For supply strategy, two approved sources are enough. Three or more creates qualification work without proportional benefit, and it increases the chance that a production line mixes parts from different lots in one build. Two sources, both qualified, both documented, is the practical target.

A selection checklist

Before ordering, confirm six items in writing: density, voltage class, package body width, temperature grade, JEDEC ID expected by the driver, and the erase/program timing the production flow can tolerate.

If any of the six is unknown, the part is not yet a substitute — it is a candidate. That distinction is what separates a qualification plan from a purchase order.

9. Cost and supply

At 64 Mbit, the price difference between vendors is small in absolute terms, so the deciding factors are availability and packaging. A part that is five cents cheaper but only available in a 150 mil body is not a drop-in for a 208 mil footprint.

Reel quantity matters as much as unit price. Check the tape width and reel size, especially for WSON and USON parts, where packaging is less standard than SOIC.

For products with a long life, keep a 128 Mbit option in the design review. The cost difference is small, and the headroom avoids a second storage redesign later.

Which vendor to pick comes down to the package you already have and the documentation your team needs. Winbond has the widest selection at this density; Macronix and GigaDevice are strong second sources; ISSI covers the WSON niche. None of them is a drop-in without a package check.

Lifecycle and last-time-buy

Serial NOR parts have long lives, but not infinite ones. When a vendor issues an end-of-life notice, the last-time-buy window is usually measured in months.

If a product uses a 64 Mbit part, keep a validated alternative in the design file — not just in a spreadsheet. The qualification should be done before the notice arrives, because doing it during a last-time-buy is expensive and rushed.

10. FAQ

Is MX25L6433F a drop-in for W25Q64JVSSIQ?

It is the same density and interface, but the Macronix part is 200 mil and the Winbond part is 208 mil. Check the land pattern before committing.

Can I use a 1.8 V part on a 3.3 V bus?

No. JW parts are 1.7–1.95 V and JV parts are 2.7–3.6 V. They are different electrical classes.

Can I swap 128 Mbit for 64 Mbit without changing firmware?

Only if the partition table and OTA design still fit in half the address space. Most designs need a layout change.

Why does my fast read return shifted data?

Usually wrong dummy cycles for the clock rate. Check the SFDP table or the datasheet for the exact setting.

Do I need to change the bootloader for a second source?

If the bootloader checks the JEDEC ID, it needs the new ID added. Otherwise the part may be rejected or treated as unknown.

Is 64 Mbit still enough for a connected product?

For an RTOS-class application with OTA staging, yes. For Linux images, move to 128 Mbit or above.
