UCC21530BQDWKRQ1 - Texas Instruments Sirkuit Terpadu RF
Harga reguler
Rp 83.000,00
Setelah Anda melakukan pemesanan, tim penjualan kami akan mengirimkan konfirmasi tertulis mengenai harga akhir, biaya pengiriman, dan perkiraan waktu pengiriman. Bea masuk, pajak, biaya perantara, dan biaya tujuan lainnya adalah tanggung jawab pelanggan. Bila diperlukan, kami dapat membantu dengan ketersediaan informasi produk dan dokumen bea cukai untuk deklarasi impor; bea cukai akhir dan pembayaran tetap menjadi tanggung jawab pelanggan.
Tidak dapat memuat ketersediaan pengambilan

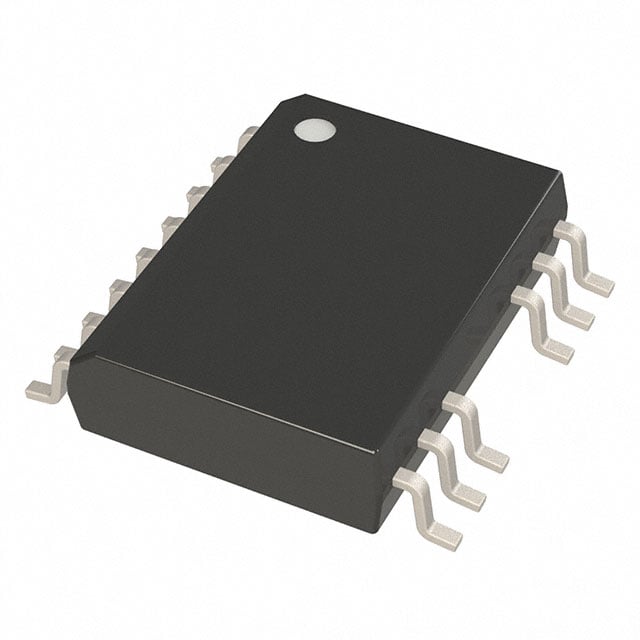

UCC21530BQDWKRQ1
6ns 3V 30ns 18V 7ns SOIC-14 surface mount, adhesive mount
Available Stock: 2363SOIC-14Active
ManufacturerTexas Instruments
PackageSOIC-14
Stock2363
Standard Pack2000
Pricing & Ordering
Unit Price$4.5416
Basic Information
| Manufacturer | Texas Instruments |
|---|---|
| Manufacturer Part Number | UCC21530BQDWKRQ1 |
| IC Category | RF Integrated Circuits |
| Package | SOIC-14 |
| Lifecycle Status | Active |
Technical Attributes
| Technology | Capacitive Coupling |
|---|---|
| Number of Channels | 2 |
| Voltage - Isolation | 5700Vrms |
| Common Mode Transient Immunity (Min) | 100V/ns |
| Propagation Delay tpLH / tpHL (Max) | 30ns, 30ns |
| Pulse Width Distortion (Max) | 6ns |
| Rise / Fall Time (Typ) | 6ns, 7ns |
| Current - Output High, Low | 4A, 6A |
| Current - Peak Output | 4A, 6A |
| Voltage - Forward (Vf) (Typ) | - |
| Voltage - Output Supply | 14.7V ~ 25V |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Operating Temperature | -40 degC ~ 125 degC |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 14-SOIC |
| Approval Agency | CQC, CSA, UL, VDE |
Documents & Engineering Resources
Inventory and pricing are updated regularly. Technical data is provided for engineering reference.
Datasheet PDF
