UCC23511QDWYQ1 - Texas Instruments Sirkuit Terpadu RF
Harga reguler
Rp 47.000,00
Setelah Anda melakukan pemesanan, tim penjualan kami akan mengirimkan konfirmasi tertulis mengenai harga akhir, biaya pengiriman, dan perkiraan waktu pengiriman. Bea masuk, pajak, biaya perantara, dan biaya tujuan lainnya adalah tanggung jawab pelanggan. Bila diperlukan, kami dapat membantu dengan ketersediaan informasi produk dan dokumen bea cukai untuk deklarasi impor; bea cukai akhir dan pembayaran tetap menjadi tanggung jawab pelanggan.
Tidak dapat memuat ketersediaan pengambilan

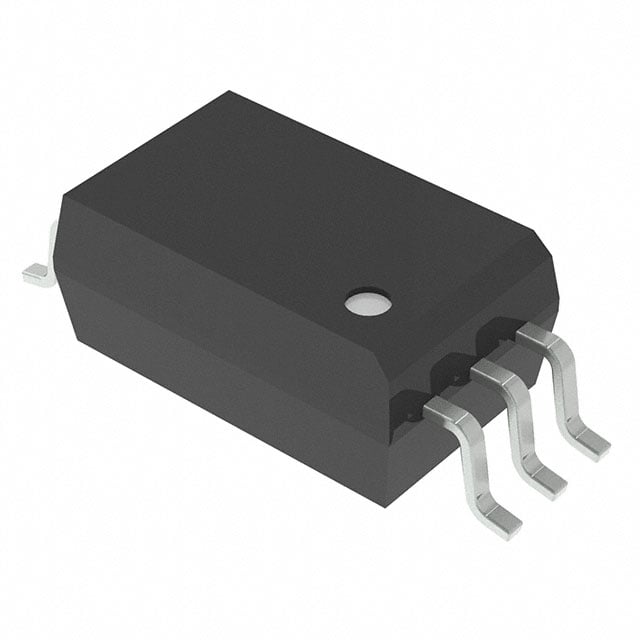

UCC23511QDWYQ1
28ns 1 25ns(Max) SOIC-6 surface mount, adhesive mount
Available Stock: 209200SOIC-6Obsolete
ManufacturerTexas Instruments
PackageSOIC-6
Stock209200
Standard Pack-
Pricing & Ordering
Unit Price$2.5501
Basic Information
| Manufacturer | Texas Instruments |
|---|---|
| Manufacturer Part Number | UCC23511QDWYQ1 |
| IC Category | RF Integrated Circuits |
| Package | SOIC-6 |
| Lifecycle Status | Obsolete |
Technical Attributes
| Technology | Capacitive Coupling |
|---|---|
| Number of Channels | 1 |
| Voltage - Isolation | 5700Vrms |
| Common Mode Transient Immunity (Min) | 150kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 105ns, 105ns |
| Pulse Width Distortion (Max) | 35ns |
| Rise / Fall Time (Typ) | 28ns, 25ns (Max) |
| Current - Output High, Low | 1A, 1A |
| Current - Peak Output | 1.5A, 2A |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Current - DC Forward (If) (Max) | 25 mA |
| Voltage - Output Supply | 14V ~ 33V |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Operating Temperature | -40 degC ~ 125 degC |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 6-SOIC |
| Approval Agency | UL, VDE |
Documents & Engineering Resources
Inventory and pricing are updated regularly. Technical data is provided for engineering reference.
Datasheet PDF
