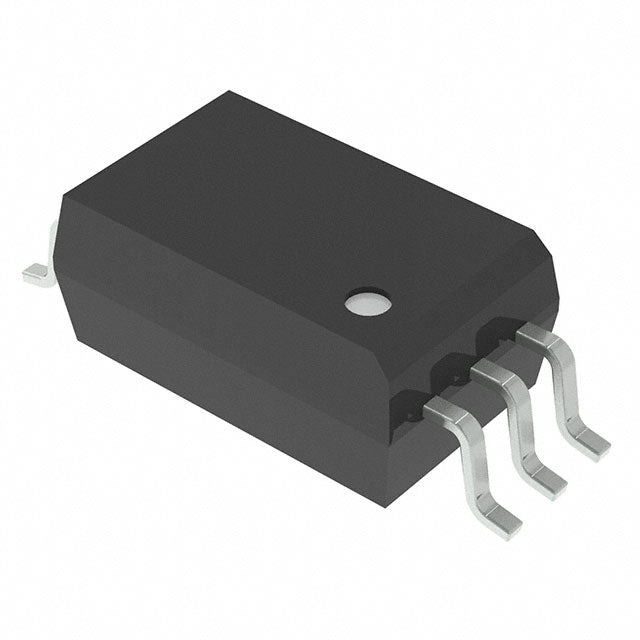

UCC23113DWYR - Texas Instruments Gate Driver, SOIC-6

Name: UCC23113DWYR - Texas Instruments Gate Driver, SOIC-6
Brand: Texas Instruments
SKU: UCC23113DWYR-SOIC(DWY)|6
Price: 0.95 EUR
Availability: InStock

In stock

SKU: UCC23113DWYR-SOIC(DWY)|6

(0)

€0,95

Dopo aver effettuato un ordine, il nostro team di vendita invierà una conferma scritta del prezzo finale, delle spese di spedizione e dei tempi di consegna stimati. I dazi doganali, le tasse, le commissioni di intermediazione e altre spese di destinazione sono a carico del cliente. Se necessario, possiamo fornire assistenza con le informazioni sul prodotto disponibili e i documenti doganali per la dichiarazione di importazione; lo sdoganamento finale e il pagamento restano a carico del cliente.

Integrated Circuit

UCC23113DWYR

4A/5A single-channel opto-compatible isolated gate driver with functional isolation (1.2kVRMS)

In Stock SOIC(DWY)|6 Active

Pricing & Availability

Price$0.3103 USD

AvailabilityIn Stock

ManufacturerTI()

PackageSOIC(DWY)|6

AvailabilityIn Stock

PackCUT TAPE

Basic Information

Manufacturer	TI()
Manufacturer Part Number	UCC23113DWYR
Description	4A/5A single-channel opto-compatible isolated gate driver with functional isolation (1.2kVRMS)
IC Category	driver
Package	SOIC(DWY)\|6
Packaging	CUT TAPE
Availability	In Stock
Standard Pack Quantity	850
Available Stock	1000
Lifecycle Status	Active

Key Specifications

isolation voltage(Vrms)	1500V
Number of Channels	1
current(IOH)	5A
current(IOL)	5A
Operating Temperature	-40°C ~ +150°C@(Tj)
(Tr)	28ns
(Tf)	25ns

Technical Attributes

tpLH	105ns
tpHL	105ns
CMTI(kV/us)	100kV/us
Operating Voltage	13V ~ 30V

Documents & Engineering Resources

Inventory and pricing are updated regularly. Technical data is provided for engineering reference.

Datasheet PDF

Open PDF
