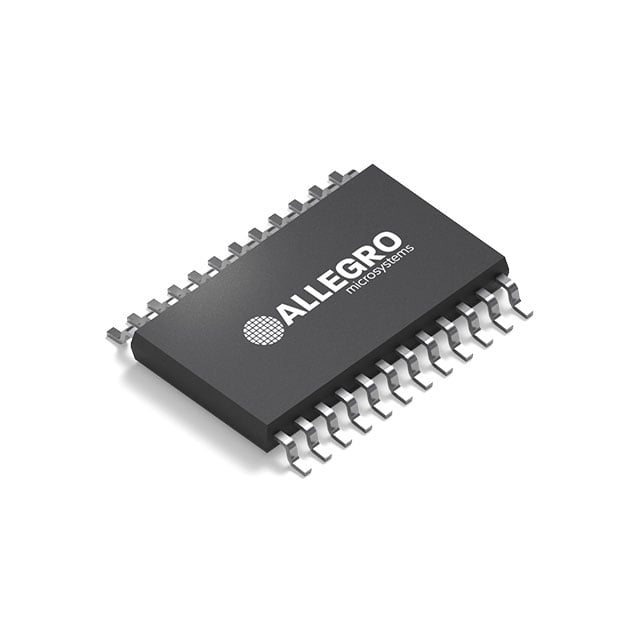

A3992SLPTR-T TSSOP-24(EP) package
A3992SLPTR-T TSSOP-24(EP) package
Allegro MicroSystems

A3992SLPTR-T - Allegro MicroSystems Driver- og interfaceintegrerede kredsløb

In stock
SKU: A3992SLPTR-T-TSSOP-24-EP
(0)
22,00 kr
Når du har afgivet en ordre, sender vores salgsteam en skriftlig bekræftelse på den endelige pris, forsendelsesomkostninger og forventet leveringstid. Importafgifter, skatter, mæglergebyrer og andre destinationsafgifter er kundens ansvar. Når det er nødvendigt, kan vi hjælpe med tilgængelig produktinformation og tolddokumenter til importangivelse; endelig toldbehandling og betaling forbliver kundens ansvar.

A3992SLPTR-T

15V~50V (4) DMOS 1.5A dualelectric 4.5V 5.5V Serial Control and Power Stage, Driver - Fully Integrated TSSOP-24(EP) surface mount, adhesive mount 7.8mm*4.4mm*1.2mm

Available Stock: 436TSSOP-24(EP)Active
ManufacturerAllegro MicroSystems
PackageTSSOP-24(EP)
Stock436
Standard Pack4000

Pricing & Ordering

Unit Price$3.1766

Basic Information

Manufacturer Allegro MicroSystems
Manufacturer Part Number A3992SLPTR-T
IC Category Driver & Interface Integrated Circuits
Package TSSOP-24(EP)
Lifecycle Status Active

Technical Attributes

Motor Type - Stepper Bipolar
Motor Type - AC, DC -
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (4)
Interface Serial
Technology DMOS
Step Resolution 1 ~ 1/64
Applications General Purpose
Current - Output 1.5A
Voltage - Supply 4.5V ~ 5.5V
Voltage - Load 15V ~ 50V
Operating Temperature -20 degC ~ 150 degC (TJ)
Mounting Type Surface Mount
Package / Case 24-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package 24-TSSOP-EP

Documents & Engineering Resources

Datasheet PDF

Inventory and pricing are updated regularly. Technical data is provided for engineering reference.

Datasheet PDF

Open datasheet PDF
