AAD08D2500 - Acelamicro Analog-til-digital-konvertere (ADC)
Regular price
1.350,00 kr
Mængderabatter
| Quantity | Unit Price |
|---|---|
| 1+ | 198,16 kr |
| 30+ | 188,57 kr |
Når du har afgivet en ordre, sender vores salgsteam en skriftlig bekræftelse på den endelige pris, forsendelsesomkostninger og forventet leveringstid. Importafgifter, skatter, mæglergebyrer og andre destinationsafgifter er kundens ansvar. Når det er nødvendigt, kan vi hjælpe med tilgængelig produktinformation og tolddokumenter til importangivelse; endelig toldbehandling og betaling forbliver kundens ansvar.
Couldn't load pickup availability
Integrated Circuit
AAD08D2500
Acelamicro dual-channel 8-bit ADC, BGA380 (17 x 17 mm), LVDS
Available to order

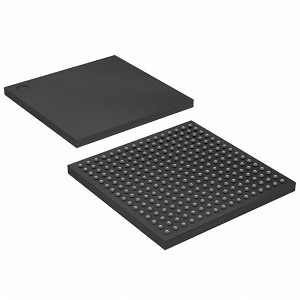

BGA380 (17 x 17 mm)
Supplier reference stock: 10
Basic Information
| Manufacturer | Acelamicro |
|---|---|
| Manufacturer Part Number | AAD08D2500 |
| Device | Dual-channel analog-to-digital converter |
| Package | BGA380 (17 x 17 mm) |
| Interface | LVDS |
| Operating Temperature | -40 C to +85 C |
| Availability | Supplier reference only; confirm before ordering |
Verified Specifications
| Maximum Sampling Rate | 2.5 / 5 GSps |
|---|---|
| Resolution | 8 bit |
| Channels | 2 / 1 |
| ENOB | 6.5 bit |
| SFDR | 51 dBc |
| Power Consumption | 3.8 W |
| Applications | Instrumentation, aerospace, high-speed data acquisition |
Distributor Reference
DNL 0.2 LSB, INL 1.5 LSB, and SNR 41.62 dB / 42.25 dB are retained as distributor reference values and should be checked against the official datasheet before engineering use.
Documents and Sources
Shopify inventory remains unchanged. Supplier stock and lead time must be confirmed before ordering.
Datasheet PDF
