ACPL-312T-500E - BROADCOM RF-integrerede kredsløb
Regular price
33,00 kr
Når du har afgivet en ordre, sender vores salgsteam en skriftlig bekræftelse på den endelige pris, forsendelsesomkostninger og forventet leveringstid. Importafgifter, skatter, mæglergebyrer og andre destinationsafgifter er kundens ansvar. Når det er nødvendigt, kan vi hjælpe med tilgængelig produktinformation og tolddokumenter til importangivelse; endelig toldbehandling og betaling forbliver kundens ansvar.
Couldn't load pickup availability
ACPL-312T-500E
500ns 15V 500ns, 500ns 30V 500ns DIP-8Gullwing surface mount, adhesive mount
Available Stock: 39SOP-8Active
ManufacturerBROADCOM

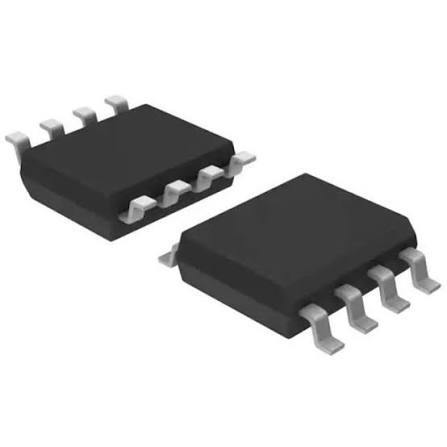

PackageSOP-8
Stock39
Standard Pack1000
Pricing & Ordering
Unit Price$4.7271
Basic Information
| Manufacturer | BROADCOM |
|---|---|
| Manufacturer Part Number | ACPL-312T-500E |
| IC Category | RF Integrated Circuits |
| Package | SOP-8 |
| Lifecycle Status | Active |
Technical Attributes
| Technology | Optical Coupling |
|---|---|
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Common Mode Transient Immunity (Min) | 25kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 500ns, 500ns |
| Pulse Width Distortion (Max) | 300ns |
| Rise / Fall Time (Typ) | 100ns, 100ns |
| Current - Output High, Low | 2A, 2A |
| Current - Peak Output | 2.5A |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Current - DC Forward (If) (Max) | 25 mA |
| Voltage - Output Supply | 15V ~ 30V |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Operating Temperature | -40 degC ~ 125 degC |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, Gull Wing |
| Supplier Device Package | 8-DIP Gull Wing |
| Approval Agency | CSA, IEC/EN/DIN, UR |
Documents & Engineering Resources
Inventory and pricing are updated regularly. Technical data is provided for engineering reference.
Datasheet PDF
