ADP1755ACPZ-R7 - Analog Devices Spændingsregulatorer – lineære low-dropout-regulatorer (LDO)
Regular price
21,00 kr
Mængderabatter
| Quantity | Unit Price |
|---|---|
| 1+ | 3,02 kr |
| 10+ | 2,60 kr |
| 30+ | 2,34 kr |
| 100+ | 2,07 kr |
| 500+ | 1,94 kr |
| 1500+ | 1,89 kr |
Når du har afgivet en ordre, sender vores salgsteam en skriftlig bekræftelse på den endelige pris, forsendelsesomkostninger og forventet leveringstid. Importafgifter, skatter, mæglergebyrer og andre destinationsafgifter er kundens ansvar. Når det er nødvendigt, kan vi hjælpe med tilgængelig produktinformation og tolddokumenter til importangivelse; endelig toldbehandling og betaling forbliver kundens ansvar.
Couldn't load pickup availability
Integrated Circuit
ADP1755ACPZ-R7
IC REG LIN POS ADJ 1.2A 16-LFCSP
In Stock

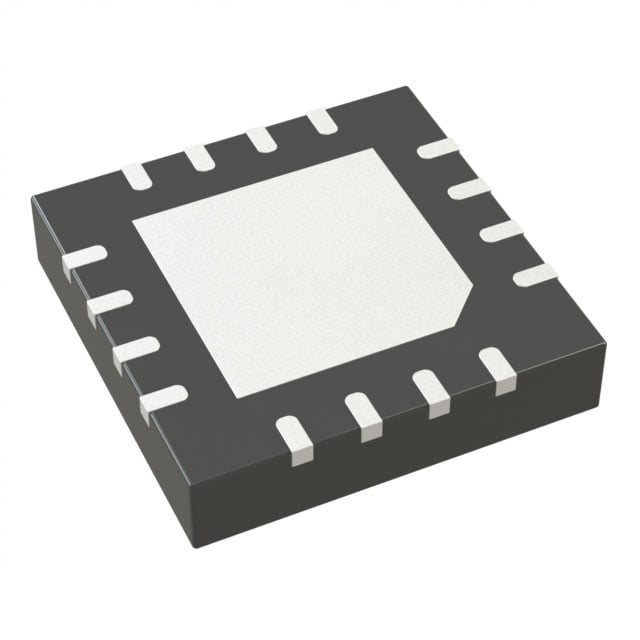

LFCSP-16(4x4)
{'Id': 0, 'Status': 'Active'}
ManufacturerADI
PackageLFCSP-16(4x4)
Stock5582
PackTape & Reel (TR)
Basic Information
| Manufacturer | ADI |
|---|---|
| Manufacturer Part Number | ADP1755ACPZ-R7 |
| Description | IC REG LIN POS ADJ 1.2A 16-LFCSP |
| IC Category | Voltage Regulators - Linear, Low Drop Out (LDO) Regulators |
| Package | LFCSP-16(4x4) |
| Packaging | Tape & Reel (TR) |
| Standard Pack Quantity | 1500 |
| Available Stock | 5582 |
| Lifecycle Status | {'Id': 0, 'Status': 'Active'} |
Key Specifications
| Output Configuration | Positive |
|---|---|
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 3.6V |
| Voltage - Output (Min/Fixed) | 0.75V |
| Voltage - Output (Max) | 3.3V |
| Voltage Dropout (Max) | 0.2V @ 1.2A |
Technical Attributes
| Current - Output | 1.2A |
|---|---|
| Current - Quiescent (Iq) | 800 µA |
| Current - Supply (Max) | 1.4 mA |
| PSRR | 65dB ~ 51dB (1kHz ~ 100kHz) |
| Control Features | Enable, Power Good, Soft Start |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-WQFN Exposed Pad, CSP |
| Supplier Device Package | 16-LFCSP (4x4) |
Documents & Engineering Resources
Inventory and pricing are updated regularly. Technical data is provided for engineering reference.
Datasheet PDF
