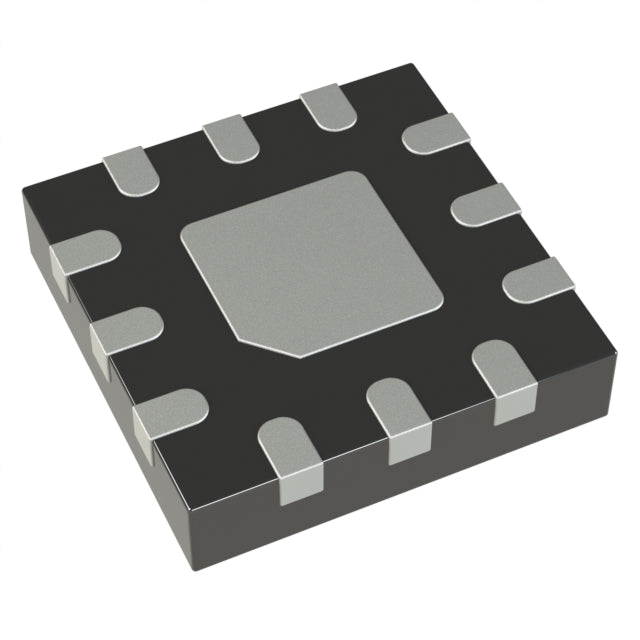

JSW2-33HDR-75+ - Mini-Circuits RF-integrerede kredsløb

Name: JSW2-33HDR-75+ - Mini-Circuits RF-integrerede kredsløb
Brand: Mini-Circuits
SKU: JSW2-33HDR-75-QFN-12
Price: 123.00 DKK
Availability: InStock

In stock

SKU: JSW2-33HDR-75-QFN-12

(0)

123,00 kr

Når du har afgivet en ordre, sender vores salgsteam en skriftlig bekræftelse på den endelige pris, forsendelsesomkostninger og forventet leveringstid. Importafgifter, skatter, mæglergebyrer og andre destinationsafgifter er kundens ansvar. Når det er nødvendigt, kan vi hjælpe med tilgængelig produktinformation og tolddokumenter til importangivelse; endelig toldbehandling og betaling forbliver kundens ansvar.

JSW2-33HDR-75+

SPDT 1 5MHz 28dB 3GHz 0.64dB 0.53dB QFN-12

Available Stock: 607QFN-12Active

ManufacturerMini-Circuits

PackageQFN-12

Stock607

Standard Pack-

Pricing & Ordering

Unit Price$17.9920

Basic Information

Manufacturer	Mini-Circuits
Manufacturer Part Number	JSW2-33HDR-75+
IC Category	RF Integrated Circuits
Package	QFN-12
Lifecycle Status	Active

Technical Attributes

RF Type	CATV, SatCom
Topology	Reflective
Circuit	SPDT
Frequency Range	5MHz ~ 3GHz
Isolation	31dB
Insertion Loss	0.53dB
Test Frequency	3GHz
P1dB	-
IIP3	70dBm
Features	-
Impedance	75Ohm
Voltage - Supply	2.3V ~ 4.8V
Operating Temperature	-40 degC ~ 85 degC
Mounting Type	Surface Mount
Package / Case	12-UFQFN Exposed Pad
Supplier Device Package	12-QFN (2x2)

Documents & Engineering Resources

Datasheet PDF

Inventory and pricing are updated regularly. Technical data is provided for engineering reference.

Datasheet PDF

Open PDF
