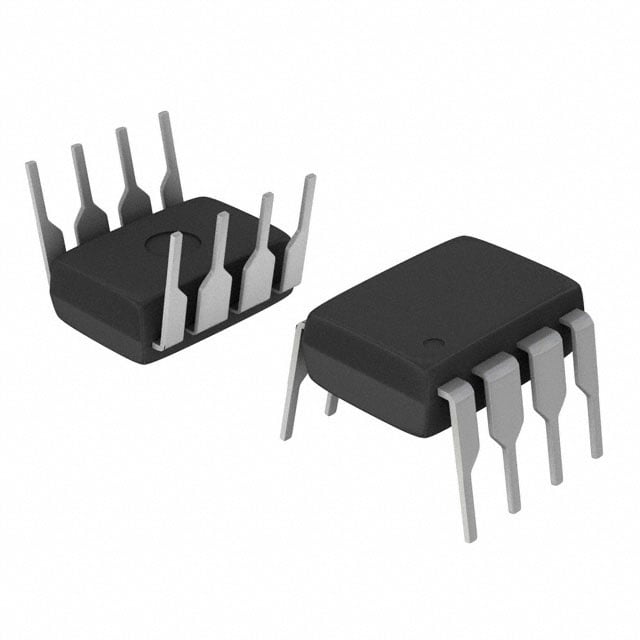

HCPL-7840-000E DIP-8 package
HCPL-7840-000E DIP-8 package
BROADCOM

HCPL-7840-000E - BROADCOM Integrated Circuits & Chips

Out of stock
SKU: HCPL-7840-000E-DIP-8-UNSPECIFIED
(0)
R$ 13,00
After you place an order, our sales team will send written confirmation of the final price, shipping charges, and estimated delivery lead time. Import duties, taxes, brokerage fees, and other destination charges are the customer's responsibility. When needed, we can assist with available product information and customs documents for import declaration; final customs clearance and payment remain the customer's responsibility.

HCPL-7840-000E

Broadcom manageinputoutputoptocoupler, mount, 8-pin, PDIP package

Available Stock: 223DIP-8Active
ManufacturerBROADCOM
PackageDIP-8
Stock223
Standard Pack50

Pricing & Ordering

Unit Price$2.3507

Basic Information

Manufacturer BROADCOM
Manufacturer Part Number HCPL-7840-000E
IC Category Integrated Circuits & Chips
Package DIP-8
Lifecycle Status Active

Technical Attributes

Amplifier Type Isolation
Number of Circuits 1
Output Type Differential
Slew Rate -
-3db Bandwidth 100 kHz
Current - Input Bias 500 nA
Voltage - Input Offset 300 µV
Current - Supply 10.86mA
Current - Output / Channel 15.5 mA
Voltage - Supply Span (Min) 4.5 V
Voltage - Supply Span (Max) 5.5 V
Operating Temperature -40 degC ~ 85 degC
Mounting Type Through Hole
Package / Case 8-DIP (0.300", 7.62mm)
Supplier Device Package 8-DIP

Inventory and pricing are updated regularly. Technical data is provided for engineering reference.

Datasheet

Download PDF
