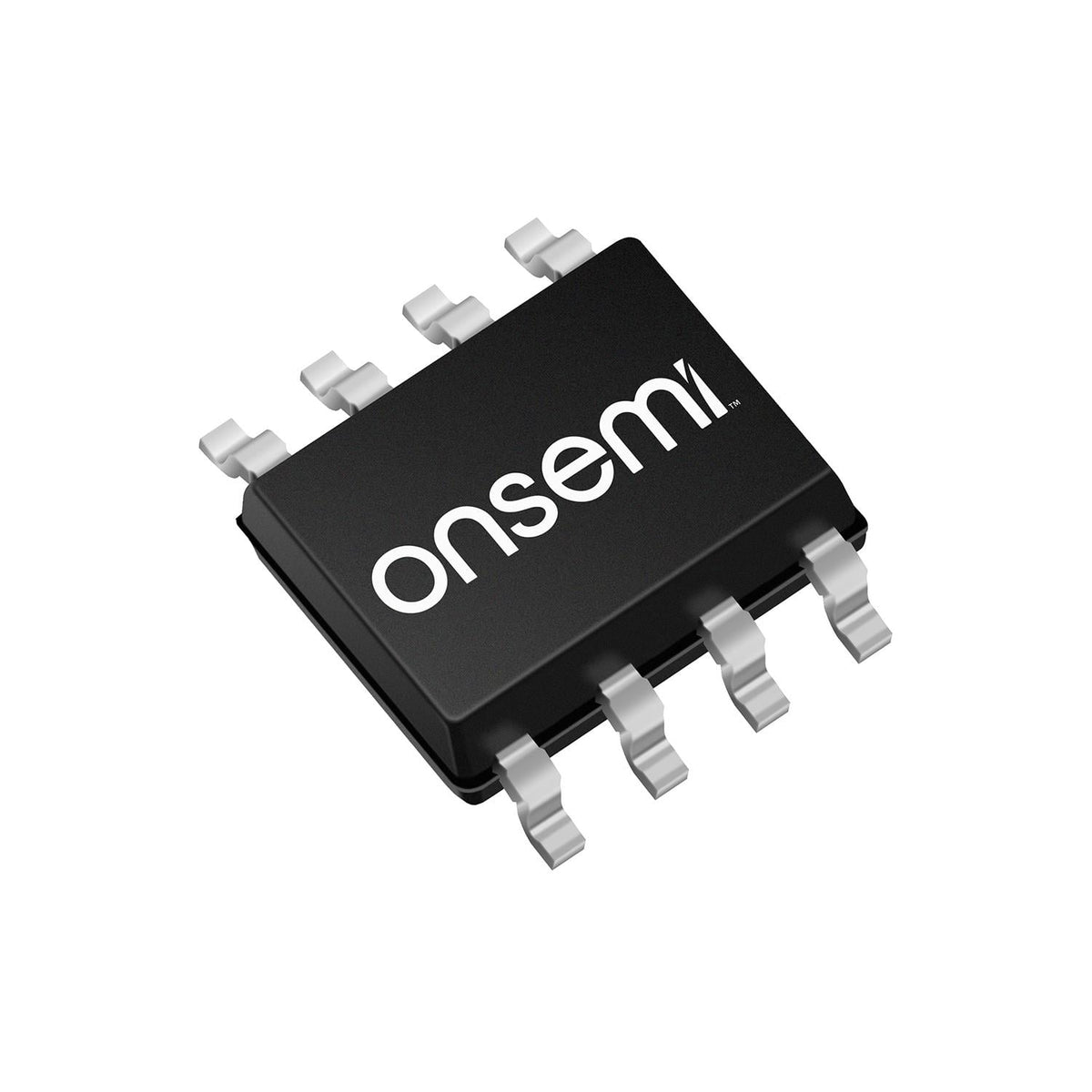

LM317LDR2G - onsemi LDO Regulator, SOIC-8

Name: LM317LDR2G - onsemi LDO Regulator, SOIC-8
Brand: onsemi
SKU: LM317LDR2G-ONSEMI-SOIC-8
Price: 0.95 EUR
Availability: InStock

In stock

SKU: LM317LDR2G-ONSEMI-SOIC-8

(0)

€0,95

Volume Discounts

Quantity	Unit Price
5+	€0,13
50+	€0,10
150+	€0,08
500+	€0,07
2500+	€0,06
5000+	€0,06

After you place an order, our sales team will send written confirmation of the final price, shipping charges, and estimated delivery lead time. Import duties, taxes, brokerage fees, and other destination charges are the customer's responsibility. When needed, we can assist with available product information and customs documents for import declaration; final customs clearance and payment remain the customer's responsibility.

Integrated Circuit

LM317LDR2G

IC REG LIN POS ADJ 100MA 8-SOIC

In Stock SOIC-8 {'Id': 0, 'Status': 'Active'}

Manufactureronsemi

PackageSOIC-8

Stock33265

PackTape & Reel (TR)

Basic Information

Manufacturer	onsemi
Manufacturer Part Number	LM317LDR2G
Description	IC REG LIN POS ADJ 100MA 8-SOIC
IC Category	Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Package	SOIC-8
Packaging	Tape & Reel (TR)
Standard Pack Quantity	2500
Available Stock	33265
Lifecycle Status	{'Id': 0, 'Status': 'Active'}

Key Specifications

Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	40V
Voltage - Output (Min/Fixed)	1.2V
Voltage - Output (Max)	37V
Voltage Dropout (Max)	-

Technical Attributes

Current - Output	100mA
Current - Quiescent (Iq)	10 mA
PSRR	80dB (120Hz)
Control Features	-
Protection Features	Over Current, Over Temperature, Short Circuit
Operating Temperature	0°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOIC

Documents & Engineering Resources

Datasheet PDF

Inventory and pricing are updated regularly. Technical data is provided for engineering reference.

Datasheet PDF

Open datasheet PDF
