Read article5962-9688201QCA - Texas Instruments, DIP
Regular price
€21,95
After you place an order, our sales team will send written confirmation of the final price, shipping charges, and estimated delivery lead time. Import duties, taxes, brokerage fees, and other destination charges are the customer's responsibility. When needed, we can assist with available product information and customs documents for import declaration; final customs clearance and payment remain the customer's responsibility.
Couldn't load pickup availability

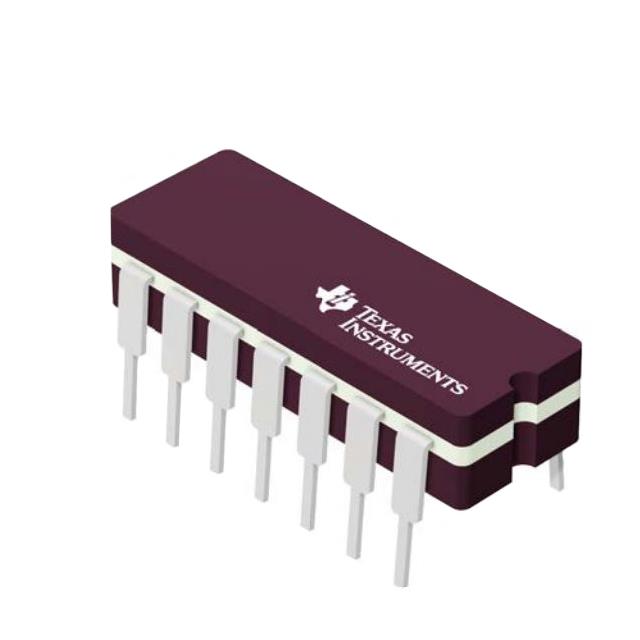

5962-9688201QCA
500ns~5µs Open Drain 4 8V 5mV@ 5V 5pA DIP mount 3.56mm(high)
Available Stock: 323DIPObsolete
ManufacturerTexas Instruments
PackageDIP
Stock323
Standard Pack1
Pricing & Ordering
Unit Price$23.8149
Basic Information
| Manufacturer | Texas Instruments |
|---|---|
| Manufacturer Part Number | 5962-9688201QCA |
| IC Category | Integrated Circuits & Chips |
| Package | DIP |
| Lifecycle Status | Obsolete |
Technical Attributes
| Type | Differential |
|---|---|
| Number of Elements | 4 |
| Output Type | Open-Drain |
| Voltage - Supply, Single/Dual (±) | 2V ~ 8V |
| Voltage - Input Offset (Max) | 5mV @ 5V |
| Current - Input Bias (Max) | 5pA (Typ) |
| Current - Output (Typ) | 20mA |
| Current - Quiescent (Max) | 600µA |
| CMRR, PSRR (Typ) | - |
| Propagation Delay (Max) | 650ns (Typ) |
| Hysteresis | - |
| Operating Temperature | -55 degC ~ 125 degC |
| Package / Case | 14-CDIP (0.300", 7.62mm) |
| Mounting Type | Through Hole |
| Supplier Device Package | 14-CDIP |
Documents & Engineering Resources
Inventory and pricing are updated regularly. Technical data is provided for engineering reference.
Datasheet PDF
