TLV1821LQDBVRQ1 - Texas Instruments Comparator, SOT-23-5 (DBV)
Regular price
€0,95
After you place an order, our sales team will send written confirmation of the final price, shipping charges, and estimated delivery lead time. Import duties, taxes, brokerage fees, and other destination charges are the customer's responsibility. When needed, we can assist with available product information and customs documents for import declaration; final customs clearance and payment remain the customer's responsibility.
Couldn't load pickup availability
TLV1821LQDBVRQ1
Comparator Standard (General Purpose) Open-Drain, Rail-to-Rail SOT-23-5
Available Stock: 86288IC PackageActive
ManufacturerTexas Instruments
PackageSOT-23-5 (DBV)
Stock86288
Standard Pack-
Pricing & Ordering
Unit Price$0.8275
Basic Information
| Manufacturer | Texas Instruments |
|---|---|
| Manufacturer Part Number | TLV1821LQDBVRQ1 |
| IC Category | Operational Amplifiers & Comparator ICs |
| Package | SOT-23-5 (DBV) |
| Lifecycle Status | Active |
Technical Attributes
| Type | Standard (General Purpose) |
|---|---|
| Number of Elements | 1 |
| Output Type | Open-Drain, Rail-to-Rail |
| Voltage - Supply, Single/Dual (±) | 2.4V ~ 40V |
| Voltage - Input Offset (Max) | 3mV @ 12V |
| Current - Input Bias (Max) | 1.2nA @ 12V |
| Current - Output (Typ) | 30mA @ 12V |
| Current - Quiescent (Max) | 9µA |
| CMRR, PSRR (Typ) | 100dB PSRR |
| Propagation Delay (Max) | 900ns (Typ) |
| Hysteresis | - |
| Operating Temperature | -40 degC ~ 125 degC |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Package / Case | SOT-23-5 (DBV) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-5 |
Documents & Engineering Resources
Inventory and pricing are updated regularly. Technical data is provided for engineering reference.
Datasheet PDF

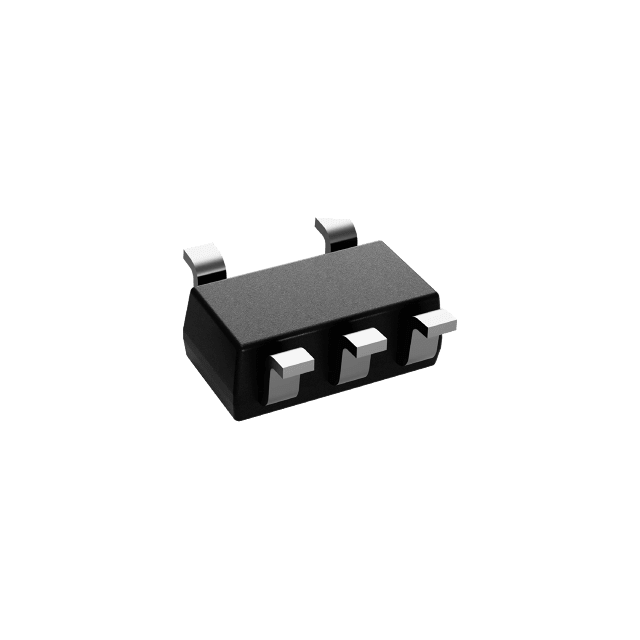

Package: SOT-23-5 (DBV); 5 pins. Verified for TLV1821LQDBVRQ1 against manufacturer package information. The image is a representative package illustration, not a pin-assignment or mechanical design reference.
