ST

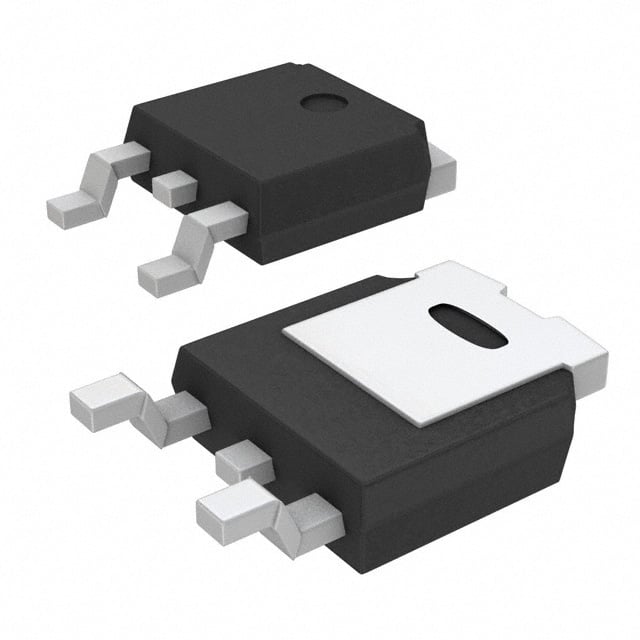

L7805CDT-TR - STMicroelectronics LDO Regulator, DPAK

Name: L7805CDT-TR - STMicroelectronics LDO Regulator, DPAK
Brand: ST
SKU: L7805CDT-TR-ST-DPAK
Price: 100 JPY
Availability: InStock

In stock

SKU: L7805CDT-TR-ST-DPAK

(0)

¥100

Volume Discounts

Quantity	Unit Price
5+	¥0
50+	¥0
150+	¥0
500+	¥0
2500+	¥0
5000+	¥0

After you place an order, our sales team will send written confirmation of the final price, shipping charges, and estimated delivery lead time. Import duties, taxes, brokerage fees, and other destination charges are the customer's responsibility. When needed, we can assist with available product information and customs documents for import declaration; final customs clearance and payment remain the customer's responsibility.

Integrated Circuit

L7805CDT-TR

IC REG LINEAR 5V 1.5A DPAK

In Stock DPAK {'Id': 0, 'Status': 'Active'}

ManufacturerST

PackageDPAK

Stock155055

PackTape & Reel (TR)

Basic Information

Manufacturer	ST
Manufacturer Part Number	L7805CDT-TR
Description	IC REG LINEAR 5V 1.5A DPAK
IC Category	Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Package	DPAK
Packaging	Tape & Reel (TR)
Standard Pack Quantity	2500
Available Stock	155055
Lifecycle Status	{'Id': 0, 'Status': 'Active'}

Key Specifications

Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	35V
Voltage - Output (Min/Fixed)	5V
Voltage - Output (Max)	-
Voltage Dropout (Max)	2V @ 1A (Typ)

Technical Attributes

Current - Output	1.5A
Current - Quiescent (Iq)	8 mA
PSRR	62dB (120Hz)
Control Features	-
Protection Features	Over Temperature, Short Circuit
Operating Temperature	0°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	TO-252-3, DPAK (2 Leads + Tab), SC-63
Supplier Device Package	DPAK

Documents & Engineering Resources

Datasheet PDF

Inventory and pricing are updated regularly. Technical data is provided for engineering reference.

Datasheet PDF

Open datasheet PDF
