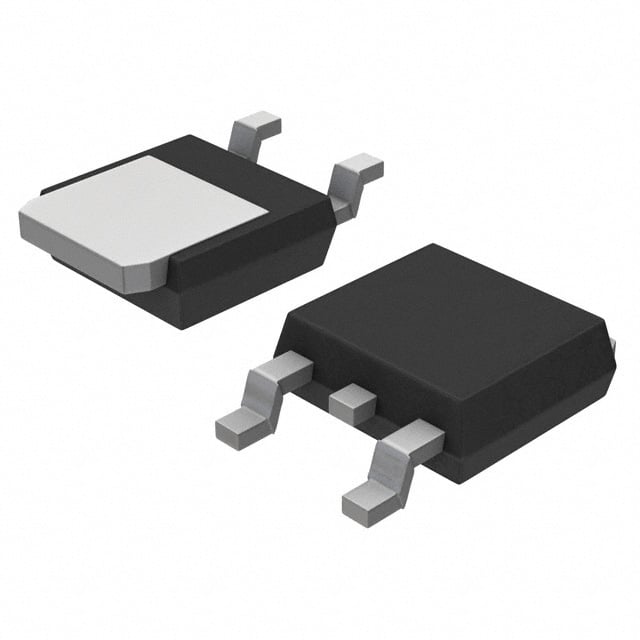

MC7805BDTRKG - onsemi LDO Regulator, TO-252-2(DPAK)

Name: MC7805BDTRKG - onsemi LDO Regulator, TO-252-2(DPAK)
Brand: onsemi
SKU: MC7805BDTRKG-ONSEMI-TO-252-2(DPAK)
Price: 0.95 EUR
Availability: InStock

In stock

SKU: MC7805BDTRKG-ONSEMI-TO-252-2(DPAK)

(0)

€0,95

Volume Discounts

Quantity	Unit Price
5+	€0,21
50+	€0,17
150+	€0,15
500+	€0,13
2500+	€0,12
5000+	€0,11

After you place an order, our sales team will send written confirmation of the final price, shipping charges, and estimated delivery lead time. Import duties, taxes, brokerage fees, and other destination charges are the customer's responsibility. When needed, we can assist with available product information and customs documents for import declaration; final customs clearance and payment remain the customer's responsibility.

Integrated Circuit

MC7805BDTRKG

IC REG LINEAR 5V 1A DPAK

In Stock TO-252-2(DPAK) {'Id': 0, 'Status': 'Active'}

Manufactureronsemi

PackageTO-252-2(DPAK)

Stock39080

PackTape & Reel (TR)

Basic Information

Manufacturer	onsemi
Manufacturer Part Number	MC7805BDTRKG
Description	IC REG LINEAR 5V 1A DPAK
IC Category	Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Package	TO-252-2(DPAK)
Packaging	Tape & Reel (TR)
Standard Pack Quantity	2500
Available Stock	39080
Lifecycle Status	{'Id': 0, 'Status': 'Active'}

Key Specifications

Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	35V
Voltage - Output (Min/Fixed)	5V
Voltage - Output (Max)	-
Voltage Dropout (Max)	2V @ 1A (Typ)

Technical Attributes

Current - Output	1A
Current - Quiescent (Iq)	8 mA
PSRR	68dB (120Hz)
Control Features	-
Protection Features	Over Temperature, Short Circuit
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	TO-252-3, DPAK (2 Leads + Tab), SC-63
Supplier Device Package	DPAK

Documents & Engineering Resources

Datasheet PDF

Inventory and pricing are updated regularly. Technical data is provided for engineering reference.
