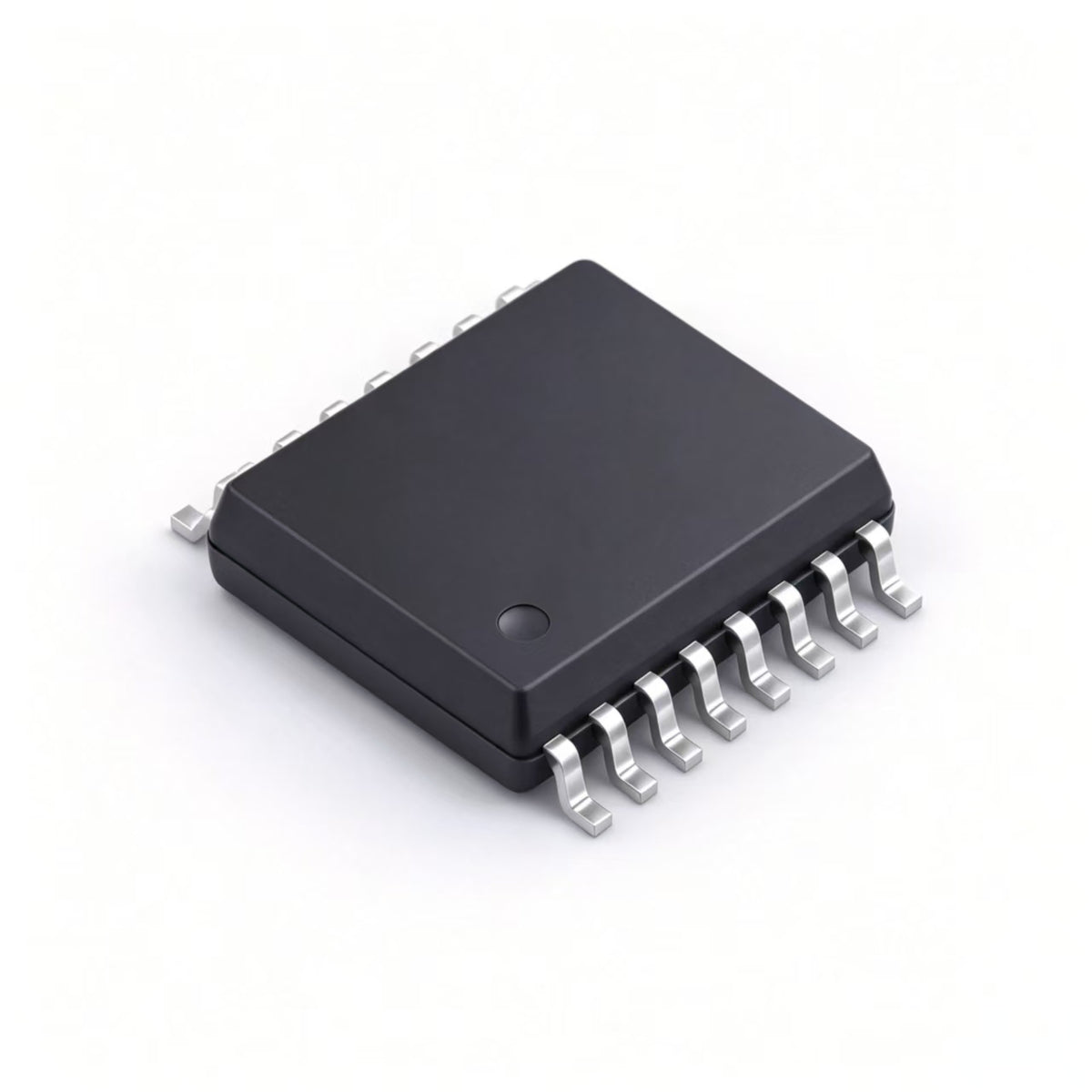

TM7705 - TM(Shenzhen Titan Micro Elec) Data Converter, SOIC-16
Regular price
€1,95
Volume Discounts
| Quantity | Unit Price |
|---|---|
| 1+ | €1,24 |
| 10+ | €0,98 |
| 30+ | €0,85 |
| 96+ | €0,72 |
| 480+ | €0,64 |
| 960+ | €0,60 |
After you place an order, our sales team will send written confirmation of the final price, shipping charges, and estimated delivery lead time. Import duties, taxes, brokerage fees, and other destination charges are the customer's responsibility. When needed, we can assist with available product information and customs documents for import declaration; final customs clearance and payment remain the customer's responsibility.
Couldn't load pickup availability
Integrated Circuit
TM7705
16 Bit Analog to Digital Converter 2 Input SOIC-16
In Stock
SOIC-16
normal
Unit Price$1.3496
In Stock
ManufacturerTM(Shenzhen Titan Micro Elec)
PackageSOIC-16
Stock5587
PackTube-packed
Basic Information
| Manufacturer | TM(Shenzhen Titan Micro Elec) |
|---|---|
| Manufacturer Part Number | TM7705 |
| Description | 16 Bit Analog to Digital Converter 2 Input SOIC-16 |
| IC Category | Analog to Digital Converters (ADC) |
| Package | SOIC-16 |
| Packaging | Tube-packed |
| Standard Pack Quantity | 50 |
| Available Stock | 5587 |
| Availability | In Stock |
| Lifecycle Status | normal |
Key Specifications
| Operating Temperature | -40 C~+85 C |
|---|---|
| Interface | Serial port |
| Quiescent Current (Iq) | - |
| Voltage - Supply | 2.7V~3.3V; 4.75V~5.25V |
| Number of Channels | 2 |
| Integral non-linearity | - |
| Voltage Reference | External |
Technical Attributes
| Clock/Oscillator | Built-in; External |
|---|---|
| Clock Frequency | 2.4576MHz; 500kHz~5MHz |
| Features | Bipolar input; Integrated modulator; Built-in digital filter; Auto calibration; Synchronous triggering; Power-on reset |
| Resolution(Bits) | 16; 38.4kHz |
| S/N Ratio | - |
| ADC architecture | Sigma-Delta |
| Programmable Gain | Support |
Documents & Engineering Resources
Inventory, lead time, and pricing are updated regularly. Technical data is provided for engineering reference.
Datasheet
Download PDFMANUFACTURER ACCESS
