LM5109BMAX/NOPB

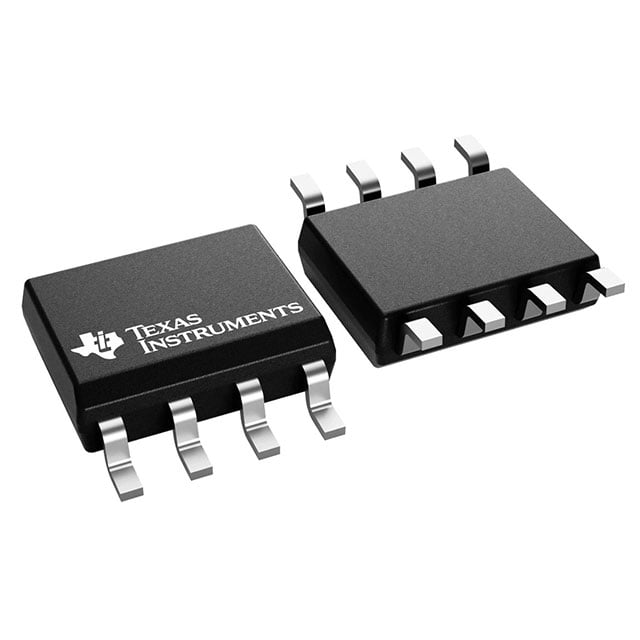

8 drive, 14V power, SOIC- 8. package

Available Stock: 3049SOIC-8Active

ManufacturerTexas Instruments

PackageSOIC-8

Stock3049

Standard Pack2500

Pricing & Ordering

Unit Price$0.6543

Basic Information

Manufacturer	Texas Instruments
Manufacturer Part Number	LM5109BMAX/NOPB
IC Category	Integrated Circuits & Chips
Package	SOIC-8
Lifecycle Status	Active

Technical Attributes

Programmable	Not Verified
Driven Configuration	Half-Bridge
Channel Type	Independent
Number of Drivers	2
Gate Type	MOSFET (N-Channel)
Voltage - Supply	8V ~ 14V
Logic Voltage - VIL, VIH	0.8V, 2.2V
Current - Peak Output (Source, Sink)	1A, 1A
Input Type	Non-Inverting
High Side Voltage - Max (Bootstrap)	108 V
Rise / Fall Time (Typ)	15ns, 15ns
Operating Temperature	-40 degC ~ 125 degC (TJ)
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOIC
