UCC27512MDRSTEP - Texas Instruments Driver & Interface Integrated Circuits

Name: UCC27512MDRSTEP - Texas Instruments Driver & Interface Integrated Circuits
Brand: Texas Instruments
SKU: UCC27512MDRSTEP-SON-UNSPECIFIED
Price: 30.00 SEK
Availability: InStock

In stock

SKU: UCC27512MDRSTEP-SON-UNSPECIFIED

(0)

30,00 kr

After you place an order, our sales team will send written confirmation of the final price, shipping charges, and estimated delivery lead time. Import duties, taxes, brokerage fees, and other destination charges are the customer's responsibility. When needed, we can assist with available product information and customs documents for import declaration; final customs clearance and payment remain the customer's responsibility.

UCC27512MDRSTEP

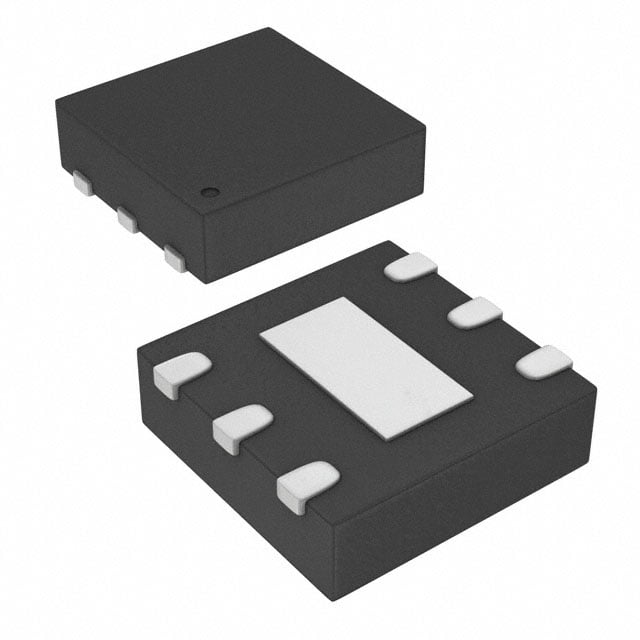

6 MOSFET driver, 20V power, SON package

Available Stock: 32970SONActive

ManufacturerTexas Instruments

PackageSON

Stock32970

Standard Pack-

Pricing & Ordering

Unit Price$2.9958

Basic Information

Manufacturer	Texas Instruments
Manufacturer Part Number	UCC27512MDRSTEP
IC Category	Driver & Interface Integrated Circuits
Package	SON
Lifecycle Status	Active

Technical Attributes

Programmable	Not Verified
Driven Configuration	Low-Side
Channel Type	Single
Number of Drivers	1
Gate Type	IGBT, MOSFET (N-Channel)
Voltage - Supply	4.5V ~ 18V
Logic Voltage - VIL, VIH	1V, 2.4V
Current - Peak Output (Source, Sink)	4A, 8A
Input Type	Inverting, Non-Inverting
Rise / Fall Time (Typ)	8ns, 7ns
Operating Temperature	-55 degC ~ 125 degC (TJ)
Mounting Type	Surface Mount
Package / Case	6-WDFN Exposed Pad
Supplier Device Package	6-SON (3x3)

Documents & Engineering Resources

Datasheet PDF

Inventory and pricing are updated regularly. Technical data is provided for engineering reference.

Datasheet PDF

Open datasheet PDF
