ADM7150ACPZ-3.3-R7 - Analog Devices, LFCSP-8-EP (3x3mm)
Regular price
$24.77
Volume Discounts
| Quantity | Unit Price |
|---|---|
| 1+ | $26.04 |
| 10+ | $25.02 |
| 30+ | $22.27 |
| 100+ | $20.73 |
After you place an order, our sales team will send written confirmation of the final price, shipping charges, and estimated delivery lead time. Import duties, taxes, brokerage fees, and other destination charges are the customer's responsibility. When needed, we can assist with available product information and customs documents for import declaration; final customs clearance and payment remain the customer's responsibility.
Couldn't load pickup availability
Integrated Circuit
ADM7150ACPZ-3.3-R7
IC REG LIN 3.3V 800MA 8-LFCSP-WD
In Stock

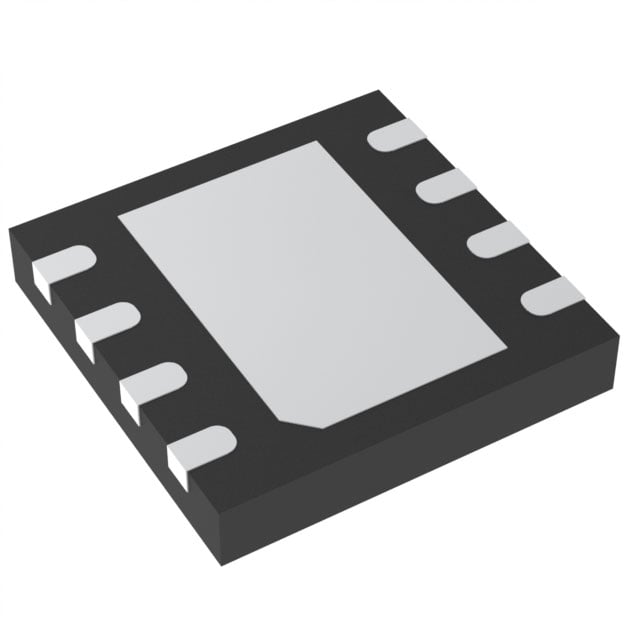

LFCSP-8-EP(3x3)
{'Id': 0, 'Status': 'Active'}
ManufacturerADI
PackageLFCSP-8-EP (3x3mm)
Stock1589
Pack-
Basic Information
| Manufacturer | ADI |
|---|---|
| Manufacturer Part Number | ADM7150ACPZ-3.3-R7 |
| Description | IC REG LIN 3.3V 800MA 8-LFCSP-WD |
| IC Category | Voltage Regulators - Linear, Low Drop Out (LDO) Regulators |
| Package | LFCSP-8-EP (3x3mm) |
| Packaging | - |
| Standard Pack Quantity | - |
| Available Stock | 1589 |
| Lifecycle Status | {'Id': 0, 'Status': 'Active'} |
Key Specifications
| Output Configuration | Positive |
|---|---|
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 16V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | - |
Technical Attributes
| Current - Output | 800mA |
|---|---|
| Current - Quiescent (Iq) | 7 mA |
| Current - Supply (Max) | 12 mA |
| PSRR | 94dB ~ 62dB (1kHz ~ 1MHz) |
| Control Features | Enable |
| Protection Features | Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad, CSP |
| Supplier Device Package | 8-LFCSP-WD (3x3) |
