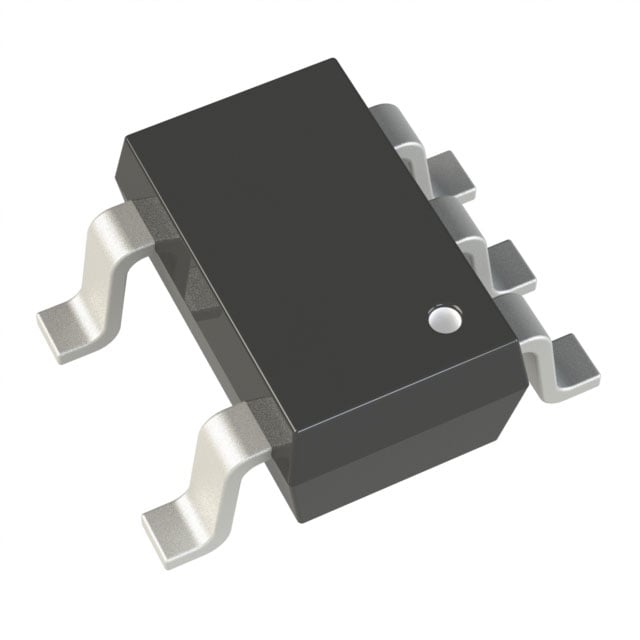

ADP151AUJZ-3.3-R7 - Analog Devices LDO Regulator, TSOT-23-5

Name: ADP151AUJZ-3.3-R7 - Analog Devices LDO Regulator, TSOT-23-5
Brand: ADI
SKU: ADP151AUJZ-3.3-R7-ADI-TSOT-23-5
Price: 2.00 USD
Availability: InStock

In stock

SKU: ADP151AUJZ-3.3-R7-ADI-TSOT-23-5

(0)

$2.00

Volume Discounts

Quantity	Unit Price
1+	$2.08
10+	$1.78
30+	$1.59
100+	$1.40
500+	$1.32
1000+	$1.28

After you place an order, our sales team will send written confirmation of the final price, shipping charges, and estimated delivery lead time. Import duties, taxes, brokerage fees, and other destination charges are the customer's responsibility. When needed, we can assist with available product information and customs documents for import declaration; final customs clearance and payment remain the customer's responsibility.

Integrated Circuit

ADP151AUJZ-3.3-R7

IC REG LIN 3.3V 200MA TSOT-23-5

In Stock TSOT-23-5 {'Id': 0, 'Status': 'Active'}

ManufacturerADI

PackageTSOT-23-5

Stock2886

PackTape & Reel (TR)

Basic Information

Manufacturer	ADI
Manufacturer Part Number	ADP151AUJZ-3.3-R7
Description	IC REG LIN 3.3V 200MA TSOT-23-5
IC Category	Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Package	TSOT-23-5
Packaging	Tape & Reel (TR)
Standard Pack Quantity	3000
Available Stock	2886
Lifecycle Status	{'Id': 0, 'Status': 'Active'}

Key Specifications

Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	3.3V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.23V @ 200mA

Technical Attributes

Current - Output	200mA
Current - Quiescent (Iq)	20 µA
Current - Supply (Max)	350 µA
PSRR	70dB ~ 55dB (10kHz ~ 100kHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	SOT-23-5 Thin, TSOT-23-5
Supplier Device Package	TSOT-23-5

Documents & Engineering Resources

Datasheet PDF

Inventory and pricing are updated regularly. Technical data is provided for engineering reference.
