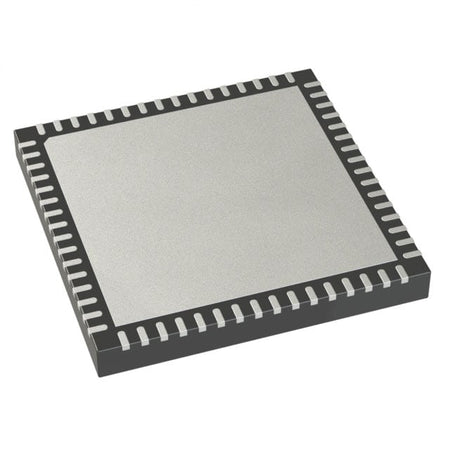

ATMEGA256RFR2-ZU - Microchip Technology RF Integrated Circuits

Name: ATMEGA256RFR2-ZU - Microchip Technology RF Integrated Circuits
Brand: Microchip Technology
SKU: ATMEGA256RFR2-ZU-QFN-UNSPECIFIED
Price: 10.21 USD
Availability: InStock

In stock

SKU: ATMEGA256RFR2-ZU-QFN-UNSPECIFIED

(0)

$10.21

After you place an order, our sales team will send written confirmation of the final price, shipping charges, and estimated delivery lead time. Import duties, taxes, brokerage fees, and other destination charges are the customer's responsibility. When needed, we can assist with available product information and customs documents for import declaration; final customs clearance and payment remain the customer's responsibility.

ATMEGA256RFR2-ZU

3.5dBm 8mA~14.5mA 802.15.4 5mA~12.5mA Zigbee DSSS, O-QPSK 3.6V 2Mbps I²C, JTAG, SPI, USART 100dBm 1.8V QFN surface mount 9mm*9mm*850µm

Available Stock: 161QFNActive

ManufacturerMicrochip Technology

PackageQFN

Stock161

Standard Pack-

Pricing & Ordering

Unit Price$10.2102

Basic Information

Manufacturer	Microchip Technology
Manufacturer Part Number	ATMEGA256RFR2-ZU
IC Category	RF Integrated Circuits
Package	QFN
Lifecycle Status	Active

Technical Attributes

Programmable	Not Verified
Type	TxRx + MCU
RF Family/Standard	802.15.4
Protocol	Zigbee
Modulation	DSSS, O-QPSK
Frequency	2.4GHz
Data Rate (Max)	2Mbps
Power - Output	3.5dBm
Sensitivity	-100dBm
Memory Size	256kB Flash, 8kB EEPROM, 32kB SRAM
Serial Interfaces	I2C, JTAG, SPI, USART
GPIO	35
Voltage - Supply	1.8V ~ 3.6V
Current - Receiving	5mA ~ 12.5mA
Current - Transmitting	8mA ~ 14.5mA
Operating Temperature	-40 degC ~ 85 degC
Mounting Type	Surface Mount
Package / Case	64-VFQFN Exposed Pad
Supplier Device Package	64-QFN (9x9)
