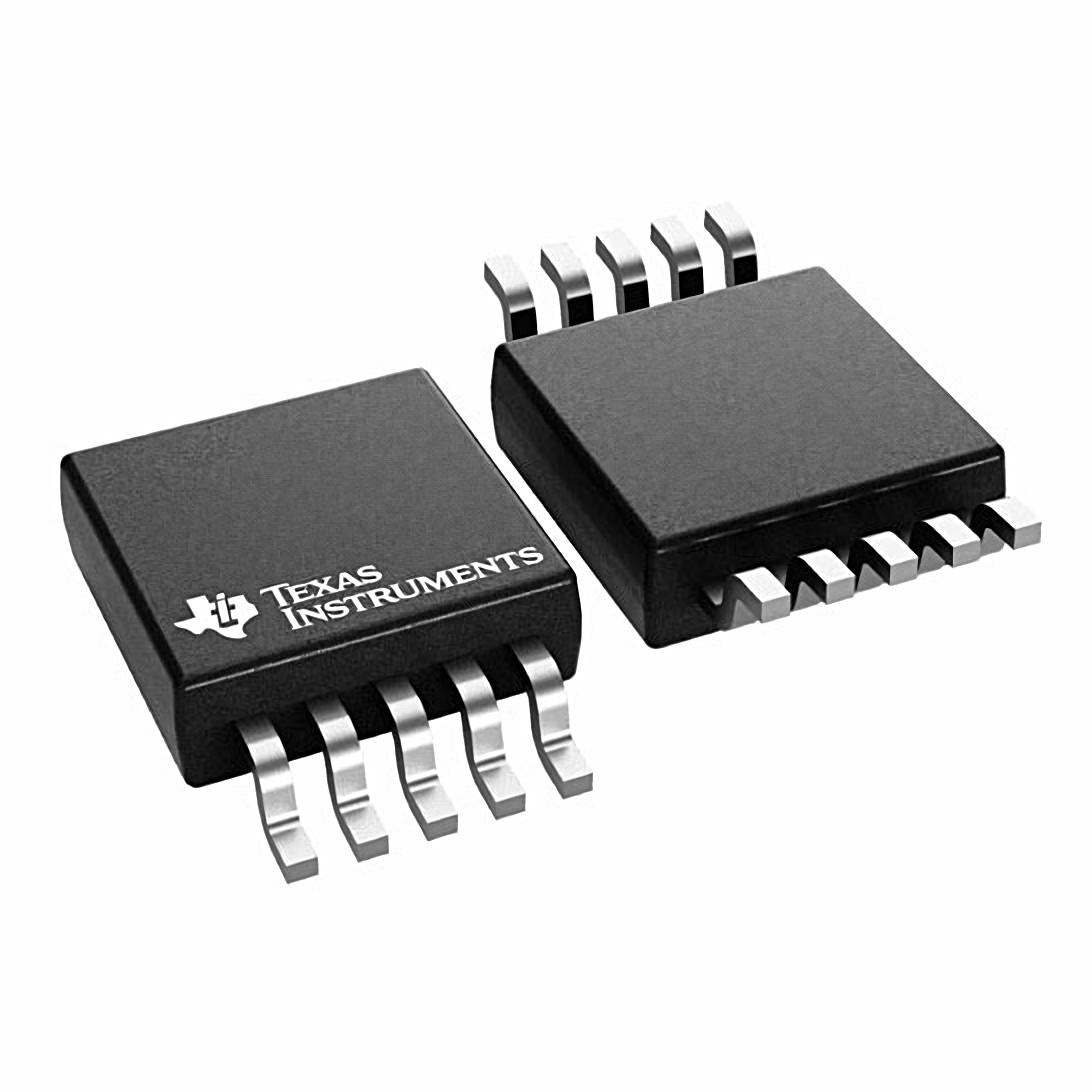

DAC80501ZDGST - Texas Instruments Data Converter, VSSOP-10
Regular price
$6.14
After you place an order, our sales team will send written confirmation of the final price, shipping charges, and estimated delivery lead time. Import duties, taxes, brokerage fees, and other destination charges are the customer's responsibility. When needed, we can assist with available product information and customs documents for import declaration; final customs clearance and payment remain the customer's responsibility.
Couldn't load pickup availability
DAC80501ZDGST
16 5µs I²C, SPI ±1(Max) 2.7V~5.5V ±1(Max) R-2R 2.7V~5.5V 16bit internal, external Voltage - Buffered VSSOP-10 surface mount, adhesive mount
Available Stock: 34316VSSOP-10Active
ManufacturerTexas Instruments
PackageVSSOP-10
Stock34316
Standard Pack-
Pricing & Ordering
Unit Price$6.1420
Basic Information
| Manufacturer | Texas Instruments |
|---|---|
| Manufacturer Part Number | DAC80501ZDGST |
| IC Category | RF Integrated Circuits |
| Package | VSSOP-10 |
| Lifecycle Status | Active |
Technical Attributes
| Number of Bits | 16 |
|---|---|
| Number of D/A Converters | 1 |
| Settling Time | 5µs (Typ) |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | I2C, SPI |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) |
| Architecture | R-2R |
| Operating Temperature | -40 degC ~ 125 degC |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-VSSOP |
| Mounting Type | Surface Mount |
Inventory and pricing are updated regularly. Technical data is provided for engineering reference.
