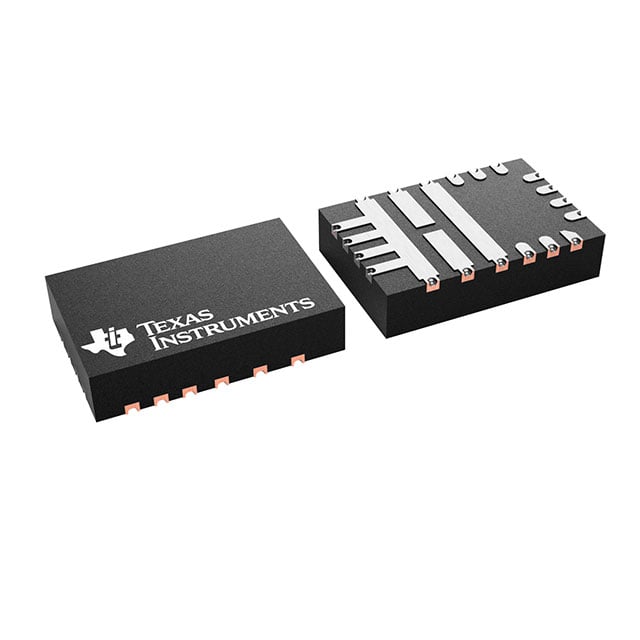

DRV8143SQRXYRQ1 - Texas Instruments Gate Driver, QFN
Regular price
$3.17
After you place an order, our sales team will send written confirmation of the final price, shipping charges, and estimated delivery lead time. Import duties, taxes, brokerage fees, and other destination charges are the customer's responsibility. When needed, we can assist with available product information and customs documents for import declaration; final customs clearance and payment remain the customer's responsibility.
Couldn't load pickup availability
DRV8143SQRXYRQ1
electric 4.5V 35V Hardware, PWM, SPI QFN surface mount
Available Stock: 5260QFNActive
ManufacturerTexas Instruments
PackageQFN
Stock5260
Standard Pack-
Pricing & Ordering
Unit Price$3.1726
Basic Information
| Manufacturer | Texas Instruments |
|---|---|
| Manufacturer Part Number | DRV8143SQRXYRQ1 |
| IC Category | RF Integrated Circuits |
| Package | QFN |
| Lifecycle Status | Active |
Technical Attributes
| Motor Type - Stepper | Bipolar |
|---|---|
| Motor Type - AC, DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge |
| Interface | PWM, SPI |
| Technology | Bi-CMOS |
| Step Resolution | - |
| Applications | - |
| Current - Output | 20A |
| Voltage - Supply | 4.5V ~ 35V |
| Voltage - Load | 4.5V ~ 35V |
| Operating Temperature | -40 degC ~ 125 degC (TA) |
| Grade | Automotive |
| Mounting Type | Surface Mount, Wettable Flank |
| Package / Case | 14-VFQFN |
| Supplier Device Package | 14-VQFN-HR (3x4.5) |
Documents & Engineering Resources
Inventory and pricing are updated regularly. Technical data is provided for engineering reference.
Datasheet PDF
