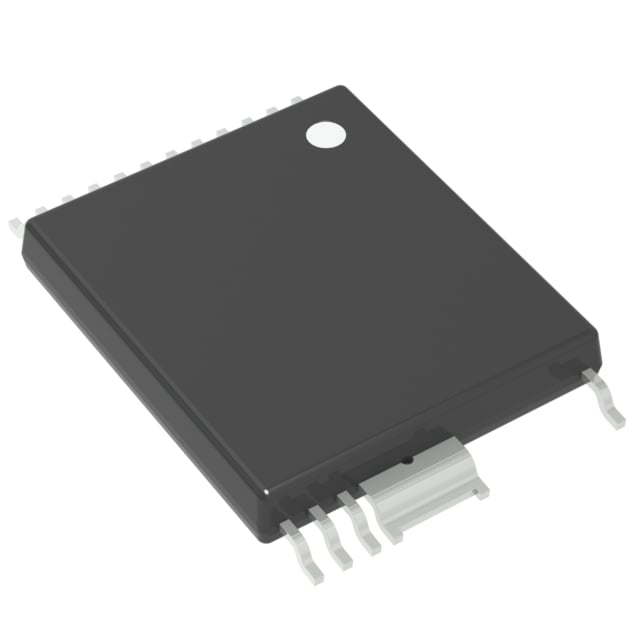

INN3376C-H301-TL - Power Integrations Power Management IC, INSOP-24D
Regular price
$2.16
After you place an order, our sales team will send written confirmation of the final price, shipping charges, and estimated delivery lead time. Import duties, taxes, brokerage fees, and other destination charges are the customer's responsibility. When needed, we can assist with available product information and customs documents for import declaration; final customs clearance and payment remain the customer's responsibility.
Couldn't load pickup availability
INN3376C-H301-TL
3.42V 3.78V INSOP-24D surface mount
Available Stock: 1890INSOP-24DActive
ManufacturerPower Integrations
PackageINSOP-24D
Stock1890
Standard Pack1
Pricing & Ordering
Unit Price$2.1608
Basic Information
| Manufacturer | Power Integrations |
|---|---|
| Manufacturer Part Number | INN3376C-H301-TL |
| IC Category | Voltage Regulators & Power Management ICs |
| Package | INSOP-24D |
| Lifecycle Status | Active |
Technical Attributes
| Output Isolation | Isolated |
|---|---|
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 725V |
| Topology | Flyback, Secondary Side SR |
| Voltage - Start Up | 5 V |
| Voltage - Supply (Vcc/Vdd) | 3.42V ~ 3.78V |
| Duty Cycle | - |
| Frequency - Switching | 75kHz |
| Power (Watts) | 40 W |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage, Short Circuit |
| Control Features | Frequency Control, Soft Start |
| Operating Temperature | -40 degC ~ 105 degC (TA) |
| Package / Case | 24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads |
| Supplier Device Package | InSOP-24D |
| Mounting Type | Surface Mount |
Inventory and pricing are updated regularly. Technical data is provided for engineering reference.
