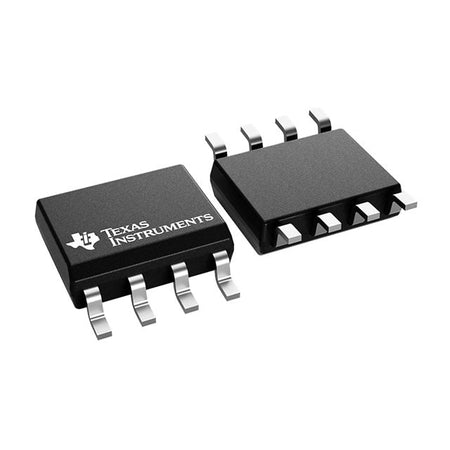

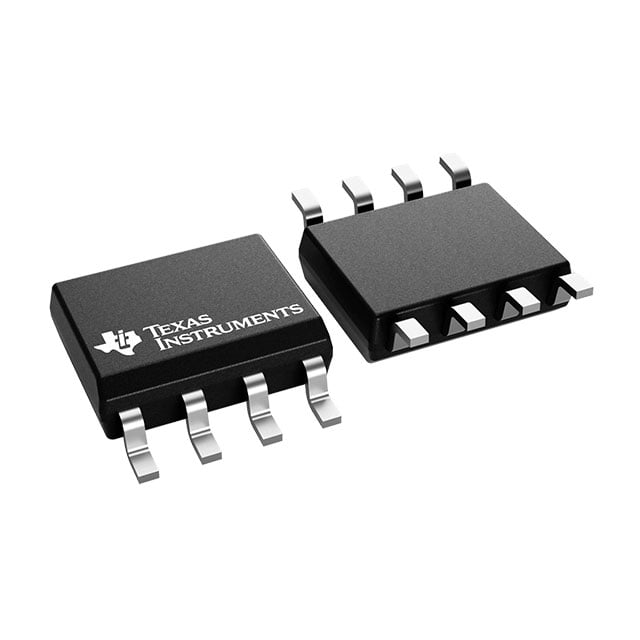

LM2105DR - Texas Instruments Power Management IC, SOIC-8
Regular price
$1.23
After you place an order, our sales team will send written confirmation of the final price, shipping charges, and estimated delivery lead time. Import duties, taxes, brokerage fees, and other destination charges are the customer's responsibility. When needed, we can assist with available product information and customs documents for import declaration; final customs clearance and payment remain the customer's responsibility.
Couldn't load pickup availability
LM2105DR
10mA 8V 5V 18V SOIC-8 surface mount, adhesive mount
Available Stock: 50SOIC-8Active
ManufacturerTexas Instruments
PackageSOIC-8
Stock50
Standard Pack3000
Pricing & Ordering
Unit Price$1.2263
Basic Information
| Manufacturer | Texas Instruments |
|---|---|
| Manufacturer Part Number | LM2105DR |
| IC Category | Voltage Regulators & Power Management ICs |
| Package | SOIC-8 |
| Lifecycle Status | Active |
Technical Attributes
| Output Configuration | Half Bridge |
|---|---|
| Applications | DC Motors, General Purpose |
| Interface | Logic |
| Load Type | Capacitive |
| Technology | NMOS |
| Rds On (Typ) | - |
| Current - Output / Channel | 500mA |
| Current - Peak Output | 800mA |
| Voltage - Supply | 5V ~ 18V |
| Voltage - Load | - |
| Operating Temperature | -40 degC ~ 125 degC (TJ) |
| Features | Bootstrap Circuit |
| Fault Protection | UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
Documents & Engineering Resources
Inventory and pricing are updated regularly. Technical data is provided for engineering reference.
Datasheet PDF
