LMR62014XMFX/NOPB - Texas Instruments DC-DC Converter, SOT-23-5 (DBV)

Name: LMR62014XMFX/NOPB - Texas Instruments DC-DC Converter, SOT-23-5 (DBV)
Brand: TI
SKU: LMR62014XMFX/NOPB-SOT-23-5
Price: 0.68 USD
Availability: InStock

In stock

SKU: LMR62014XMFX/NOPB-SOT-23-5

(0)

$0.68

Volume Discounts

Quantity	Unit Price
1+	$0.70
10+	$0.56
30+	$0.49
100+	$0.43
500+	$0.38
1000+	$0.36

After you place an order, our sales team will send written confirmation of the final price, shipping charges, and estimated delivery lead time. Import duties, taxes, brokerage fees, and other destination charges are the customer's responsibility. When needed, we can assist with available product information and customs documents for import declaration; final customs clearance and payment remain the customer's responsibility.

Integrated Circuit

LMR62014XMFX/NOPB

1.6MHz Boost Adjustable 1.4A 3V~20V SOT-23-5 Voltage Regulators - DC DC Switching Regulators RoHS

In Stock SOT-23-5 (DBV) normal

Unit Price$0.6959

In Stock

ManufacturerTI

PackageSOT-23-5 (DBV)

Stock843

PackTape & Reel (TR)

Basic Information

Manufacturer	TI
Manufacturer Part Number	LMR62014XMFX/NOPB
Description	1.6MHz Boost Adjustable 1.4A 3V~20V SOT-23-5 Voltage Regulators - DC DC Switching Regulators RoHS
IC Category	Voltage Regulators - DC DC Switching Regulators
Package	SOT-23-5 (DBV)
Packaging	Tape & Reel (TR)
Standard Pack Quantity	3000
Available Stock	843
Availability	In Stock
Lifecycle Status	normal

Key Specifications

Operating Temperature	-40 C~+125 C@(TJ)
Frequency-Switching	1.6MHz
Function	Boost
Number of Outputs	1
Features	Cycle-by-cycle current limiting; Overcurrent Protection
Output Type	Adjustable
Topology	Boost

Technical Attributes

Voltage - Supply	2.7V~14V
Switch tube (built-in/external)	Built-in
Current - Output	1.4A
Voltage - Output	3V~20V
Quiescent Current	2mA

Documents & Engineering Resources

Inventory, lead time, and pricing are updated regularly. Technical data is provided for engineering reference.

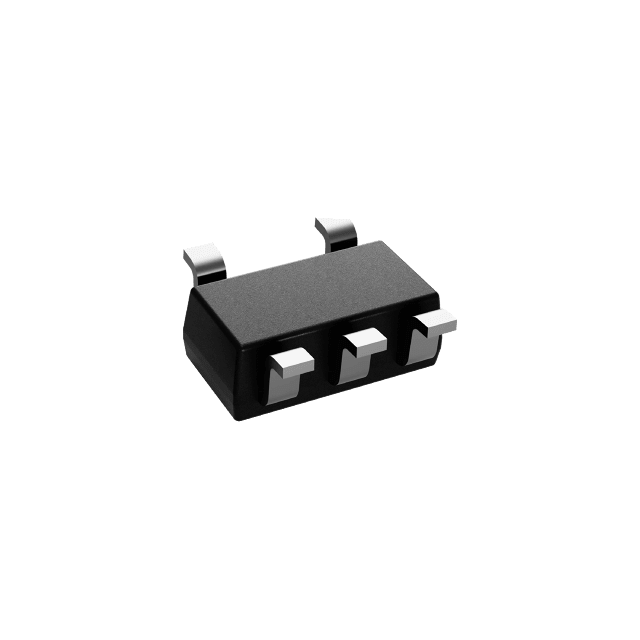

Package: SOT-23-5 (DBV); 5 pins. Verified for LMR62014XMFX/NOPB against manufacturer package information. The image is a representative package illustration, not a pin-assignment or mechanical design reference.

Datasheet PDF

Open PDF
