onsemi

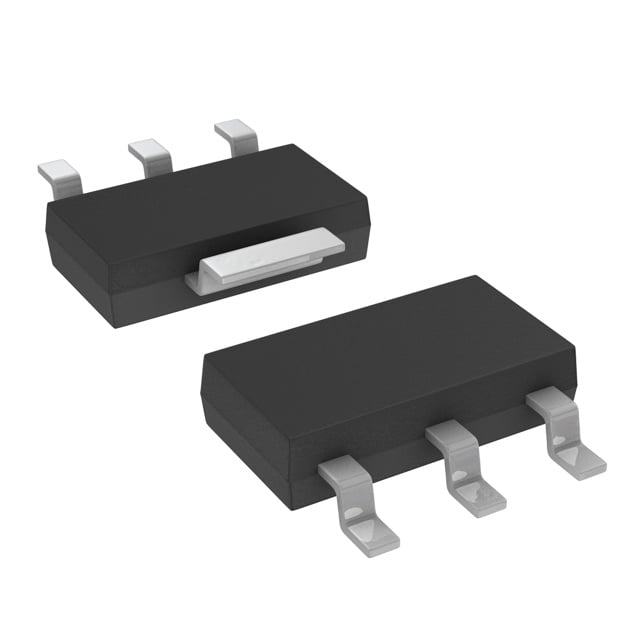

NCP1117ST33T3G - onsemi Power Management IC, SOT-223

Name: NCP1117ST33T3G - onsemi Power Management IC, SOT-223
Brand: onsemi
SKU: NCP1117ST33T3G-ONSEMI-SOT-223
Price: 1.23 USD
Availability: InStock

In stock

SKU: NCP1117ST33T3G-ONSEMI-SOT-223

(0)

$1.23

Volume Discounts

Quantity	Unit Price
5+	$0.24
50+	$0.19
150+	$0.14
500+	$0.12
2500+	$0.11
4000+	$0.10

After you place an order, our sales team will send written confirmation of the final price, shipping charges, and estimated delivery lead time. Import duties, taxes, brokerage fees, and other destination charges are the customer's responsibility. When needed, we can assist with available product information and customs documents for import declaration; final customs clearance and payment remain the customer's responsibility.

Integrated Circuit

NCP1117ST33T3G

IC REG LINEAR 3.3V 1A SOT-223

In Stock SOT-223 {'Id': 0, 'Status': 'Active'}

Manufactureronsemi

PackageSOT-223

Stock78970

Pack-

Basic Information

Manufacturer	onsemi
Manufacturer Part Number	NCP1117ST33T3G
Description	IC REG LINEAR 3.3V 1A SOT-223
IC Category	Integrated Circuits
Package	SOT-223
Packaging	-
Standard Pack Quantity	-
Available Stock	78970
Lifecycle Status	{'Id': 0, 'Status': 'Active'}

Key Specifications

Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	20V
Voltage - Output (Min/Fixed)	3.3V
Voltage - Output (Max)	-
Voltage Dropout (Max)	1.2V @ 800mA

Technical Attributes

Current - Output	1A
Current - Quiescent (Iq)	10 mA
PSRR	64dB (120Hz)
Control Features	-
Protection Features	Over Current, Over Temperature
Operating Temperature	0°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	TO-261-4, TO-261AA
Supplier Device Package	SOT-223

Documents & Engineering Resources

Datasheet PDF

Inventory and pricing are updated regularly. Technical data is provided for engineering reference.

Datasheet PDF

Open datasheet PDF
