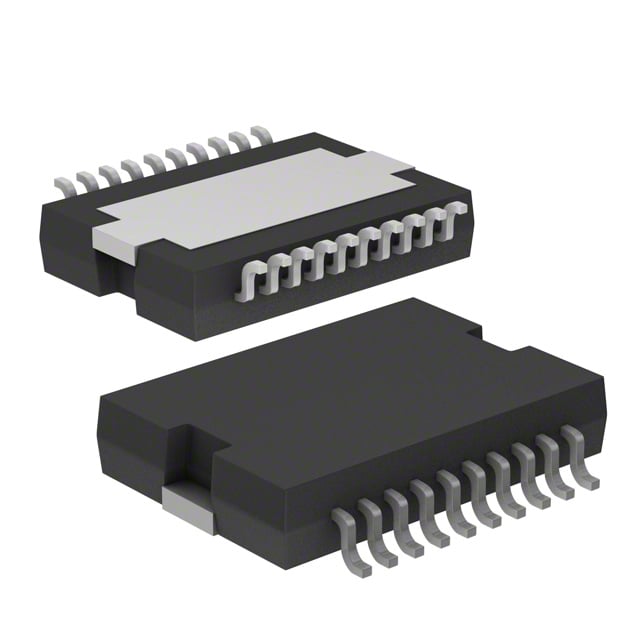

TLE7209-2R - Infineon Technologies Interface IC, DSO-20
Regular price
$5.45
After you place an order, our sales team will send written confirmation of the final price, shipping charges, and estimated delivery lead time. Import duties, taxes, brokerage fees, and other destination charges are the customer's responsibility. When needed, we can assist with available product information and customs documents for import declaration; final customs clearance and payment remain the customer's responsibility.
Couldn't load pickup availability
TLE7209-2R
5V~28V CMOS electric 5V 28V SPI Control and Power Stage, Driver - Fully Integrated DSO-20 surface mount, adhesive mount 15.9mm*11mm*3.5mm
Available Stock: 2400DSO-20Obsolete
ManufacturerInfineon Technologies
PackageDSO-20
Stock2400
Standard Pack800
Pricing & Ordering
Unit Price$5.4537
Basic Information
| Manufacturer | Infineon Technologies |
|---|---|
| Manufacturer Part Number | TLE7209-2R |
| IC Category | Driver & Interface Integrated Circuits |
| Package | DSO-20 |
| Lifecycle Status | Obsolete |
Technical Attributes
| Motor Type - Stepper | - |
|---|---|
| Motor Type - AC, DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (2) |
| Interface | SPI |
| Technology | CMOS |
| Step Resolution | - |
| Applications | General Purpose |
| Current - Output | 5A |
| Voltage - Supply | 5V ~ 28V |
| Voltage - Load | 5V ~ 28V |
| Operating Temperature | -40 degC ~ 150 degC (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 20-PowerSOIC (0.433", 11.00mm Width) |
| Supplier Device Package | PG-DSO-20-12 |
Inventory and pricing are updated regularly. Technical data is provided for engineering reference.
