Read articleTLV3701ID - Texas Instruments, SOIC-8
Regular price
$1.00
After you place an order, our sales team will send written confirmation of the final price, shipping charges, and estimated delivery lead time. Import duties, taxes, brokerage fees, and other destination charges are the customer's responsibility. When needed, we can assist with available product information and customs documents for import declaration; final customs clearance and payment remain the customer's responsibility.
Couldn't load pickup availability

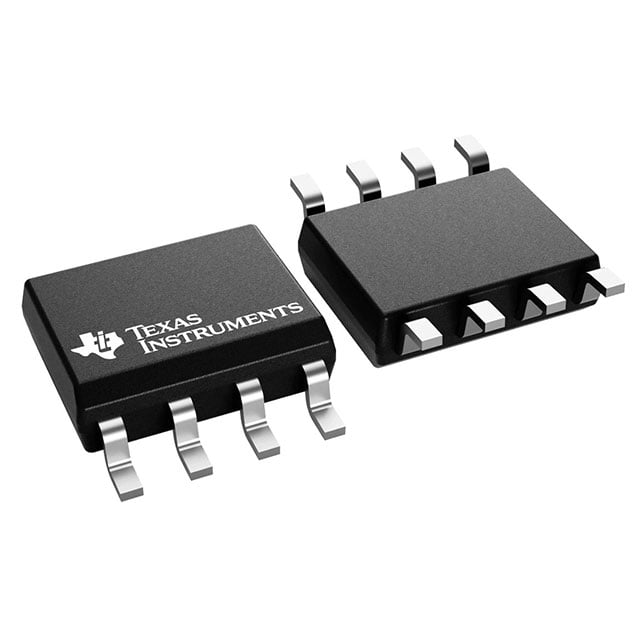

TLV3701ID
800nA 36µs CMOS, Push-Pull, Rail to Rail 1 2.7V 16V 5mV@ 15V 250pA@ 15V SOIC-8 surface mount 4.9mm*3.91mm*1.58mm
Available Stock: 9970SOIC-8Active
ManufacturerTexas Instruments
PackageSOIC-8
Stock9970
Standard Pack1
Pricing & Ordering
Unit Price$1.0043
Basic Information
| Manufacturer | Texas Instruments |
|---|---|
| Manufacturer Part Number | TLV3701ID |
| IC Category | RF Integrated Circuits |
| Package | SOIC-8 |
| Lifecycle Status | Active |
Technical Attributes
| Type | Standard (General Purpose) |
|---|---|
| Number of Elements | 1 |
| Output Type | CMOS, Push-Pull, Rail-to-Rail |
| Voltage - Supply, Single/Dual (±) | 2.7V ~ 16V, ±1.35V ~ 8V |
| Voltage - Input Offset (Max) | 5mV @ 15V |
| Current - Input Bias (Max) | 250pA @ 15V |
| Current - Output (Typ) | 10mA |
| Current - Quiescent (Max) | 1µA |
| CMRR, PSRR (Typ) | 88dB CMRR, 105dB PSRR |
| Propagation Delay (Max) | - |
| Hysteresis | - |
| Operating Temperature | -40 degC ~ 125 degC |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SOIC |
Documents & Engineering Resources
Inventory and pricing are updated regularly. Technical data is provided for engineering reference.
Datasheet PDF
