TPS51397ARJER - Texas Instruments DC-DC Converter, QFN-20
Regular price
$1.07
Volume Discounts
| Quantity | Unit Price |
|---|---|
| 1+ | $1.04 |
| 10+ | $0.92 |
| 30+ | $0.81 |
| 100+ | $0.73 |
| 500+ | $0.70 |
| 1000+ | $0.68 |
After you place an order, our sales team will send written confirmation of the final price, shipping charges, and estimated delivery lead time. Import duties, taxes, brokerage fees, and other destination charges are the customer's responsibility. When needed, we can assist with available product information and customs documents for import declaration; final customs clearance and payment remain the customer's responsibility.
Couldn't load pickup availability
Integrated Circuit
TPS51397ARJER
Buck Switching Regulator IC Adjustable 0.6V~5.5V 1 Output 10A QFN-20-EP(3x3)

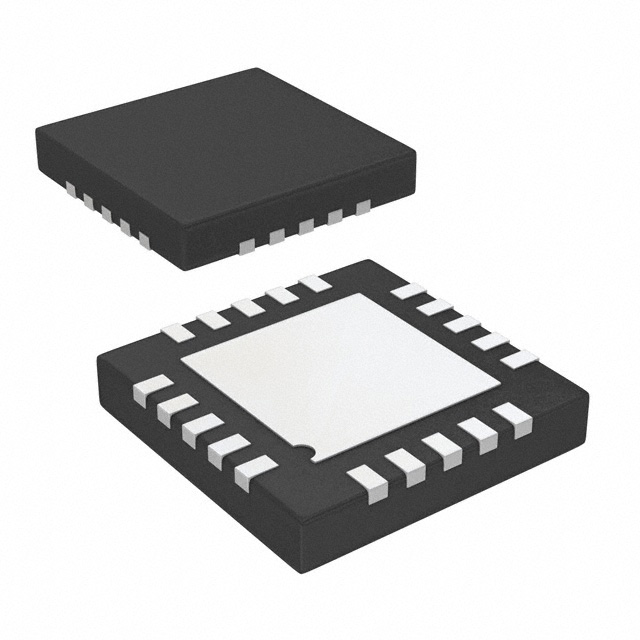

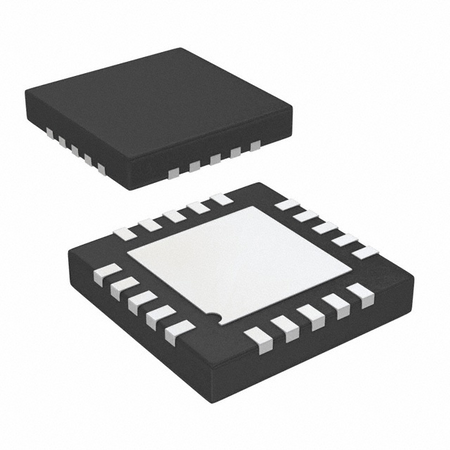

In Stock QFN-20-EP(3x3) normal
Unit Price$1.0049
In Stock
ManufacturerTI
PackageQFN-20-EP(3x3)
Stock720
PackTape & Reel (TR)
Basic Information
| Manufacturer | TI |
|---|---|
| Manufacturer Part Number | TPS51397ARJER |
| Description | Buck Switching Regulator IC Adjustable 0.6V~5.5V 1 Output 10A QFN-20-EP(3x3) |
| IC Category | Voltage Regulators - DC DC Switching Regulators |
| Package | QFN-20 |
| Packaging | Tape & Reel (TR) |
| Standard Pack Quantity | 3000 |
| Available Stock | 720 |
| Availability | In Stock |
| Lifecycle Status | normal |
Key Specifications
| Operating Temperature | -40℃~+125℃@(TJ) |
|---|---|
| Frequency - Switching | 500kHz;800kHz |
| Function | Step-down type |
| Number of Outputs | 1 |
| Features | Adjustable soft-start;Output discharge;Cycle-by-cycle current limiting;Protection latch;Operating status indication;Light load efficient mode;Overcurrent Protection |
| Output Type | Adjustable |
| Topology | Buck |
Technical Attributes
| Operating Voltage | 4.5V~24V |
|---|---|
| Switch tube (built-in/external) | Built-in |
| Output Voltage | 600mV~5.5V |
| Output Current | 10A |
| Quiescent Current | 110uA |
Documents & Engineering Resources
Inventory, lead time, and pricing are updated regularly. Technical data is provided for engineering reference.
Datasheet PDF
