TPS55340PWPR - Texas Instruments DC-DC Converter, HTSSOP-14 (PWP)
Regular price
$2.53
Volume Discounts
| Quantity | Unit Price |
|---|---|
| 1+ | $2.49 |
| 10+ | $2.36 |
| 30+ | $2.24 |
| 100+ | $2.15 |
| 500+ | $2.11 |
| 1000+ | $2.09 |
After you place an order, our sales team will send written confirmation of the final price, shipping charges, and estimated delivery lead time. Import duties, taxes, brokerage fees, and other destination charges are the customer's responsibility. When needed, we can assist with available product information and customs documents for import declaration; final customs clearance and payment remain the customer's responsibility.
Couldn't load pickup availability
Integrated Circuit
TPS55340PWPR
1.14MHz Boost Adjustable 2.9V~38V 5.25A HTSSOP-14-EP Voltage Regulators - DC DC Switching Regulators RoHS
In Stock
HTSSOP-14 (PWP)
normal
Unit Price$1.1411
In Stock
ManufacturerTI
PackageHTSSOP-14 (PWP)
Stock3668
PackTape & Reel (TR)
Basic Information
| Manufacturer | TI |
|---|---|
| Manufacturer Part Number | TPS55340PWPR |
| Description | 1.14MHz Boost Adjustable 2.9V~38V 5.25A HTSSOP-14-EP Voltage Regulators - DC DC Switching Regulators RoHS |
| IC Category | Voltage Regulators - DC DC Switching Regulators |
| Package | HTSSOP-14 (PWP) |
| Packaging | Tape & Reel (TR) |
| Standard Pack Quantity | 2000 |
| Available Stock | 3668 |
| Availability | In Stock |
| Lifecycle Status | normal |
Key Specifications
| Operating Temperature | -40℃~+125℃@(TA) |
|---|---|
| Frequency - Switching | 1.14MHz |
| Function | Boost |
| Number of Outputs | 1 |
| Features | Frequency synchronization;Adjustable soft-start;Light load efficient mode;Cycle-by-cycle current limiting;External compensation |
| Output Type | Adjustable |
| Topology | Boost |
Technical Attributes
| Operating Voltage | 2.9V~32V |
|---|---|
| Switch tube (built-in/external) | Built-in |
| Output Voltage | 2.9V~38V |
| Output Current | 5.25A |
| Quiescent Current | 500uA |
Documents & Engineering Resources
Inventory, lead time, and pricing are updated regularly. Technical data is provided for engineering reference.

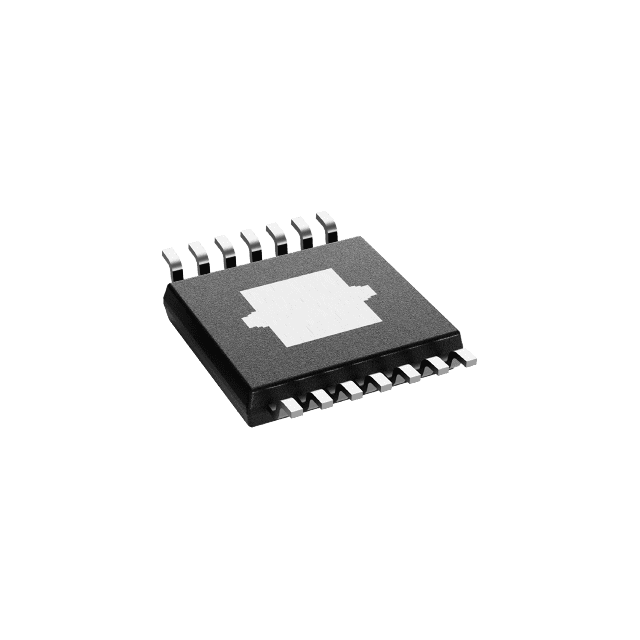

Package: HTSSOP-14 (PWP); 14 pins. Verified for TPS55340PWPR against manufacturer package information. The image is a representative package illustration, not a pin-assignment or mechanical design reference.
