TPS568230RJER - Texas Instruments DC-DC Converter, VQFN-20-EP(3X3)
Regular price
$1.05
After you place an order, our sales team will send written confirmation of the final price, shipping charges, and estimated delivery lead time. Import duties, taxes, brokerage fees, and other destination charges are the customer's responsibility. When needed, we can assist with available product information and customs documents for import declaration; final customs clearance and payment remain the customer's responsibility.
Couldn't load pickup availability
Integrated Circuit
TPS568230RJER
Buck Switching Regulator IC Adjustable 0.6V~7V 1 Output 8A VQFN-20-EP(3x3)
In Stock

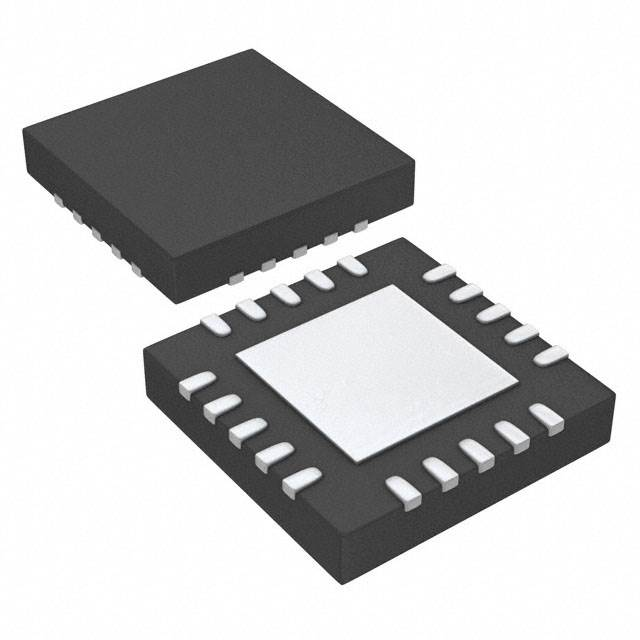

VQFN-20-EP(3x3)
normal
Unit Price$1.001
In Stock
ManufacturerTI
PackageVQFN-20-EP(3x3)
Stock3468
PackTape & Reel (TR)
Basic Information
| Manufacturer | TI |
|---|---|
| Manufacturer Part Number | TPS568230RJER |
| Description | Buck Switching Regulator IC Adjustable 0.6V~7V 1 Output 8A VQFN-20-EP(3x3) |
| IC Category | Voltage Regulators - DC DC Switching Regulators |
| Package | VQFN-20-EP(3x3) |
| Packaging | Tape & Reel (TR) |
| Standard Pack Quantity | 3000 |
| Available Stock | 3468 |
| Availability | In Stock |
| Lifecycle Status | normal |
Key Specifications
| Operating Temperature | -40 C~+125 C@(TJ) |
|---|---|
| Frequency-Switching | 600kHz; 800kHz; 1MHz |
| Function | Step-down type |
| Number of Outputs | 1 |
| Features | Adjustable soft-start; Operating status indication; Output discharge; Cycle-by-cycle current limiting; Light load efficient mode; Built-in LDO regulator; Overcurrent Protection |
| Output Type | Adjustable |
| Topology | Buck |
Technical Attributes
| Voltage - Supply | 4.5V~18V |
|---|---|
| Switch tube (built-in/external) | Built-in |
| Voltage - Output | 600mV~7V |
| Current - Output | 8A |
| Quiescent Current | 105uA |
Documents & Engineering Resources
Inventory, lead time, and pricing are updated regularly. Technical data is provided for engineering reference.
Datasheet PDF
