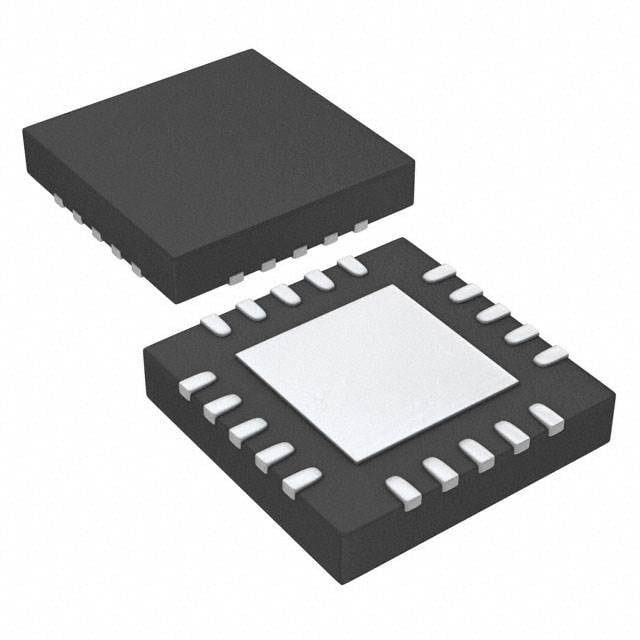

TPS7A4700RGWR - Texas Instruments LDO Regulator, VQFN-20-EP(5X5)

Name: TPS7A4700RGWR - Texas Instruments LDO Regulator, VQFN-20-EP(5X5)
Brand: TI
SKU: TPS7A4700RGWR-TI-VQFN-20-EP(5X5)
Price: 4.18 USD
Availability: InStock

In stock

SKU: TPS7A4700RGWR-TI-VQFN-20-EP(5X5)

(0)

$4.18

Volume Discounts

Quantity	Unit Price
1+	$4.34
10+	$3.84
30+	$3.53
100+	$3.18
500+	$3.06
1000+	$3.01

After you place an order, our sales team will send written confirmation of the final price, shipping charges, and estimated delivery lead time. Import duties, taxes, brokerage fees, and other destination charges are the customer's responsibility. When needed, we can assist with available product information and customs documents for import declaration; final customs clearance and payment remain the customer's responsibility.

Integrated Circuit

TPS7A4700RGWR

IC REG LINEAR POS ADJ 1A 20-VQFN

In Stock VQFN-20-EP(5x5) {'Id': 0, 'Status': 'Active'}

ManufacturerTI

PackageVQFN-20-EP(5x5)

Stock9364

PackTape & Reel (TR)

Basic Information

Manufacturer	TI
Manufacturer Part Number	TPS7A4700RGWR
Description	IC REG LINEAR POS ADJ 1A 20-VQFN
IC Category	Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Package	VQFN-20-EP(5x5)
Packaging	Tape & Reel (TR)
Standard Pack Quantity	3000
Available Stock	9364
Lifecycle Status	{'Id': 0, 'Status': 'Active'}

Key Specifications

Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	35V
Voltage - Output (Min/Fixed)	1.4V
Voltage - Output (Max)	20.5V
Voltage Dropout (Max)	0.45V @ 1A

Technical Attributes

Current - Output	1A
Current - Quiescent (Iq)	1 mA
Current - Supply (Max)	6.1 mA
PSRR	78dB (1kHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	20-VQFN Exposed Pad
Supplier Device Package	20-VQFN (5x5)

Documents & Engineering Resources

Datasheet PDF

Inventory and pricing are updated regularly. Technical data is provided for engineering reference.

Datasheet PDF

Open datasheet PDF
