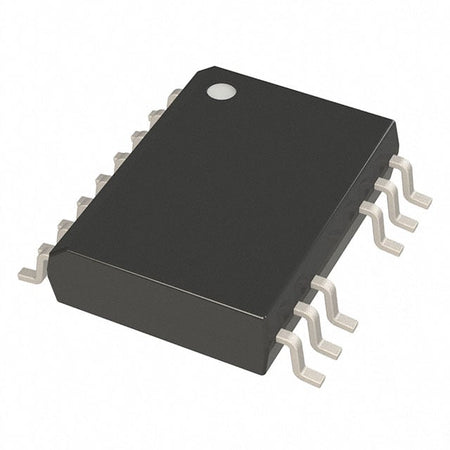

UCC21320QDWKQ1 - Texas Instruments Gate Driver, SOIC-14
Regular price
$4.95
After you place an order, our sales team will send written confirmation of the final price, shipping charges, and estimated delivery lead time. Import duties, taxes, brokerage fees, and other destination charges are the customer's responsibility. When needed, we can assist with available product information and customs documents for import declaration; final customs clearance and payment remain the customer's responsibility.
Couldn't load pickup availability
UCC21320QDWKQ1
6ns 4 3V 18V 7ns SOIC-14 surface mount
Available Stock: 22660SOIC-14Obsolete
ManufacturerTexas Instruments
PackageSOIC-14
Stock22660
Standard Pack-
Pricing & Ordering
Unit Price$4.9479
Basic Information
| Manufacturer | Texas Instruments |
|---|---|
| Manufacturer Part Number | UCC21320QDWKQ1 |
| IC Category | RF Integrated Circuits |
| Package | SOIC-14 |
| Lifecycle Status | Obsolete |
Technical Attributes
| Technology | Capacitive Coupling |
|---|---|
| Number of Channels | 2 |
| Voltage - Isolation | 3750Vrms |
| Common Mode Transient Immunity (Min) | 100V/ns |
| Propagation Delay tpLH / tpHL (Max) | 30ns, 30ns |
| Pulse Width Distortion (Max) | 6ns |
| Rise / Fall Time (Typ) | 6ns, 7ns |
| Current - Output High, Low | 4A, 6A |
| Current - Peak Output | 4A, 6A |
| Voltage - Forward (Vf) (Typ) | - |
| Voltage - Output Supply | 9.2V ~ 25V |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Operating Temperature | -40 degC ~ 125 degC |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 14-SOIC |
| Approval Agency | CQC, UL, VDE |
