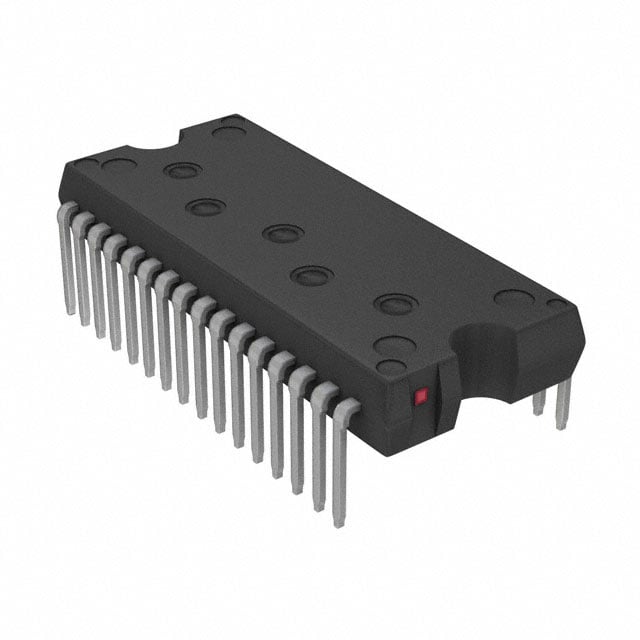

STGIPQ5C60T-HL N2DIP-26 package
STGIPQ5C60T-HL N2DIP-26 package
STMicroelectronics

STGIPQ5C60T-HL - STMicroelectronics Circuits intégrés de commande et d’interface

In stock
SKU: STGIPQ5C60T-HL-N2DIP-26
(0)
€3,95
Après avoir passé une commande, notre équipe commerciale vous enverra une confirmation écrite du prix final, des frais d'expédition et du délai de livraison estimé. Les droits d'importation, taxes, frais de courtage et autres frais de destination sont à la charge du client. En cas de besoin, nous pouvons vous aider avec les informations disponibles sur les produits et les documents douaniers pour la déclaration d'importation ; Le dédouanement final et le paiement restent à la charge du client.

STGIPQ5C60T-HL

500V(Max) 3 IGBT, synchronous electric 13.5V 18V Control and Power Stage, Driver - Fully Integrated N2DIP-26 mount

Available Stock: 1800N2DIP-26Active
ManufacturerSTMicroelectronics
PackageN2DIP-26
Stock1800
Standard Pack360

Pricing & Ordering

Unit Price$3.9179

Basic Information

Manufacturer STMicroelectronics
Manufacturer Part Number STGIPQ5C60T-HL
IC Category Driver & Interface Integrated Circuits
Package N2DIP-26
Lifecycle Status Active

Technical Attributes

Motor Type - Stepper -
Motor Type - AC, DC AC, Synchronous
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (3)
Interface -
Technology IGBT
Step Resolution -
Applications Appliance
Current - Output -
Voltage - Supply 13.5V ~ 18V
Voltage - Load 500V (Max)
Operating Temperature -40 degC ~ 150 degC (TJ)
Mounting Type Through Hole
Package / Case 26-DIP Module
Supplier Device Package 26-N2DIP

Documents & Engineering Resources

Datasheet PDF

Inventory and pricing are updated regularly. Technical data is provided for engineering reference.

Datasheet PDF

Open PDF
