ADS7816U - Texas Instruments A/Dコンバータ（ADC）

Name: ADS7816U - Texas Instruments A/Dコンバータ（ADC）
Brand: TI
Price: 1400 JPY
Availability: InStock

In stock

(0)

¥1,400

Volume Discounts

Quantity	Unit Price
1+	¥8
10+	¥7
30+	¥7
75+	¥6

After you place an order, our sales team will send written confirmation of the final price, shipping charges, and estimated delivery lead time. Import duties, taxes, brokerage fees, and other destination charges are the customer's responsibility. When needed, we can assist with available product information and customs documents for import declaration; final customs clearance and payment remain the customer's responsibility.

Integrated Circuit

ADS7816U

Serial port 5V SOIC-8 Analog to Digital Converters (ADC) RoHS

In Stock SOIC-8 normal

Unit Price$7.9418

In Stock

ManufacturerTI

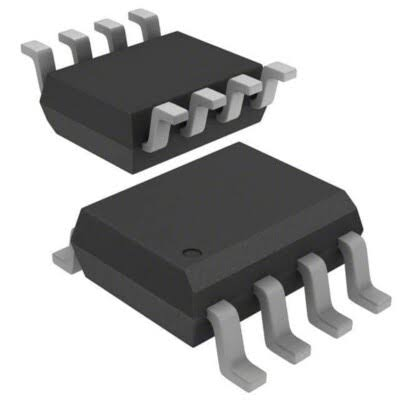

PackageSOIC-8

Stock792

PackTube-packed

Basic Information

Manufacturer	TI
Manufacturer Part Number	ADS7816U
Description	Serial port 5V SOIC-8 Analog to Digital Converters (ADC) RoHS
IC Category	Analog to Digital Converters (ADC)
Package	SOIC-8
Packaging	Tube-packed
Standard Pack Quantity	75
Available Stock	792
Availability	In Stock
Lifecycle Status	normal

Key Specifications

Operating Temperature	-40 C~+85 C
Voltage Reference	External
Clock/Oscillator	External
Clock Frequency	3.2MHz
Features	Bipolar input; Synchronous triggering
Interface	Serial port
Quiescent Current (Iq)	3uA

Technical Attributes

Resolution(Bits)	12; 200kHz
Voltage - Supply	5V
Number of Channels	1
ADC architecture	SAR
Integral non-linearity	2LSB

Documents & Engineering Resources

Inventory, lead time, and pricing are updated regularly. Technical data is provided for engineering reference.

Datasheet PDF

Open datasheet PDF
