TLV75533PDBVR - Texas Instruments 電圧レギュレータ - リニア低ドロップアウト（LDO）レギュレータ

Name: TLV75533PDBVR - Texas Instruments 電圧レギュレータ - リニア低ドロップアウト（LDO）レギュレータ
Brand: TI
SKU: TLV75533PDBVR-TI-SOT-23-5
Price: 200 JPY
Availability: InStock

In stock

SKU: TLV75533PDBVR-TI-SOT-23-5

(0)

¥200

Volume Discounts

Quantity	Unit Price
5+	¥0
50+	¥0
150+	¥0
500+	¥0
3000+	¥0
6000+	¥0

After you place an order, our sales team will send written confirmation of the final price, shipping charges, and estimated delivery lead time. Import duties, taxes, brokerage fees, and other destination charges are the customer's responsibility. When needed, we can assist with available product information and customs documents for import declaration; final customs clearance and payment remain the customer's responsibility.

Integrated Circuit

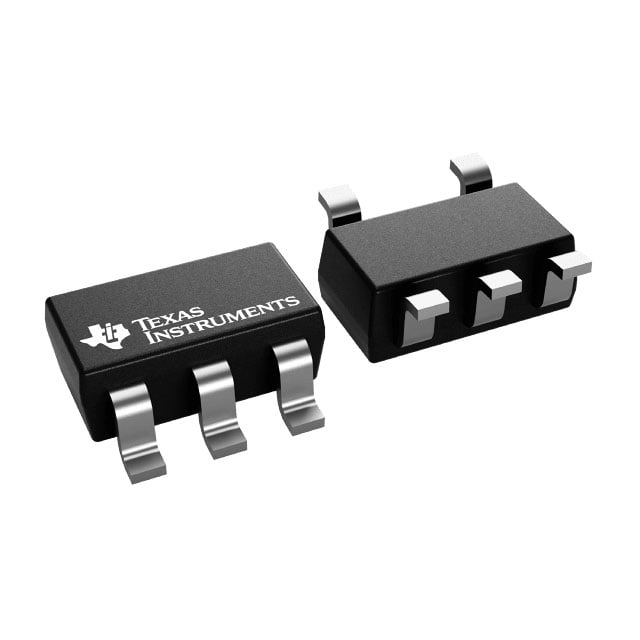

TLV75533PDBVR

IC REG LINEAR 3.3V 500MA SOT23-5

In Stock SOT-23-5 {'Id': 0, 'Status': 'Active'}

ManufacturerTI

PackageSOT-23-5

Stock17915

PackTape & Reel (TR)

Basic Information

Manufacturer	TI
Manufacturer Part Number	TLV75533PDBVR
Description	IC REG LINEAR 3.3V 500MA SOT23-5
IC Category	Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Package	SOT-23-5
Packaging	Tape & Reel (TR)
Standard Pack Quantity	3000
Available Stock	17915
Lifecycle Status	{'Id': 0, 'Status': 'Active'}

Key Specifications

Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	3.3V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.238V @ 500mA

Technical Attributes

Current - Output	500mA
Current - Quiescent (Iq)	31 µA
PSRR	52dB (1kHz ~ 1MHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	SC-74A, SOT-753
Supplier Device Package	SOT-23-5

Documents & Engineering Resources

Datasheet PDF

Inventory and pricing are updated regularly. Technical data is provided for engineering reference.

Datasheet PDF

Open datasheet PDF
