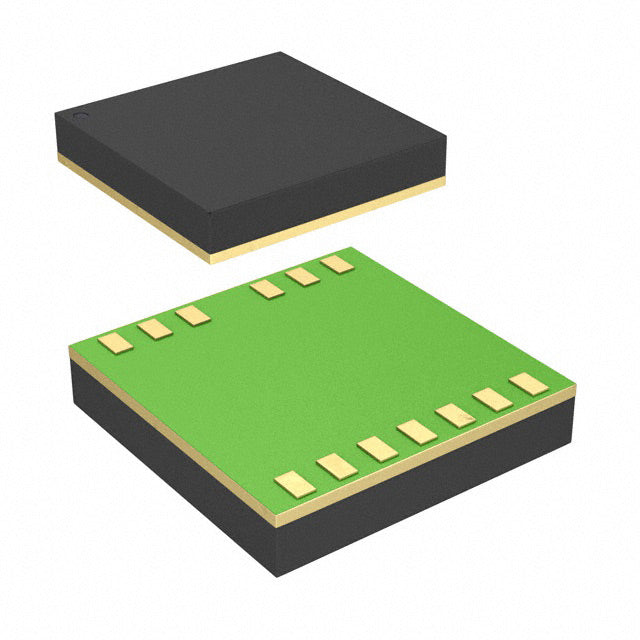

UCC21225ANPLR - Texas Instruments RF Integrated Circuits

Name: UCC21225ANPLR - Texas Instruments RF Integrated Circuits
Brand: Texas Instruments
SKU: UCC21225ANPLR-VLGA-13-UNSPECIFIED
Price: 1.95 EUR
Availability: InStock

In stock

SKU: UCC21225ANPLR-VLGA-13-UNSPECIFIED

(0)

€1,95

After you place an order, our sales team will send written confirmation of the final price, shipping charges, and estimated delivery lead time. Import duties, taxes, brokerage fees, and other destination charges are the customer's responsibility. When needed, we can assist with available product information and customs documents for import declaration; final customs clearance and payment remain the customer's responsibility.

UCC21225ANPLR

6ns 2 3V 30ns, 30ns 18V 7ns, VLGA-13 surface mount 1mm(high)

Available Stock: 2539VLGA-13Active

ManufacturerTexas Instruments

PackageVLGA-13

Stock2539

Standard Pack3000

Pricing & Ordering

Unit Price$2.1947

Basic Information

Manufacturer	Texas Instruments
Manufacturer Part Number	UCC21225ANPLR
IC Category	RF Integrated Circuits
Package	VLGA-13
Lifecycle Status	Active

Technical Attributes

Technology	Capacitive Coupling
Number of Channels	2
Voltage - Isolation	2500Vrms
Common Mode Transient Immunity (Min)	100V/ns
Propagation Delay tpLH / tpHL (Max)	30ns, 30ns
Pulse Width Distortion (Max)	6ns
Rise / Fall Time (Typ)	6ns, 7ns
Current - Output High, Low	4A, 6A
Current - Peak Output	-
Voltage - Forward (Vf) (Typ)	-
Voltage - Output Supply	3V ~ 18V
Grade	Automotive
Qualification	AEC-Q100
Operating Temperature	-40 degC ~ 125 degC
Mounting Type	Surface Mount
Package / Case	13-VFLGA
Supplier Device Package	13-VLGA (5x5)
Approval Agency	CQC, CSA, UR, VDE

Inventory and pricing are updated regularly. Technical data is provided for engineering reference.
